Product Family

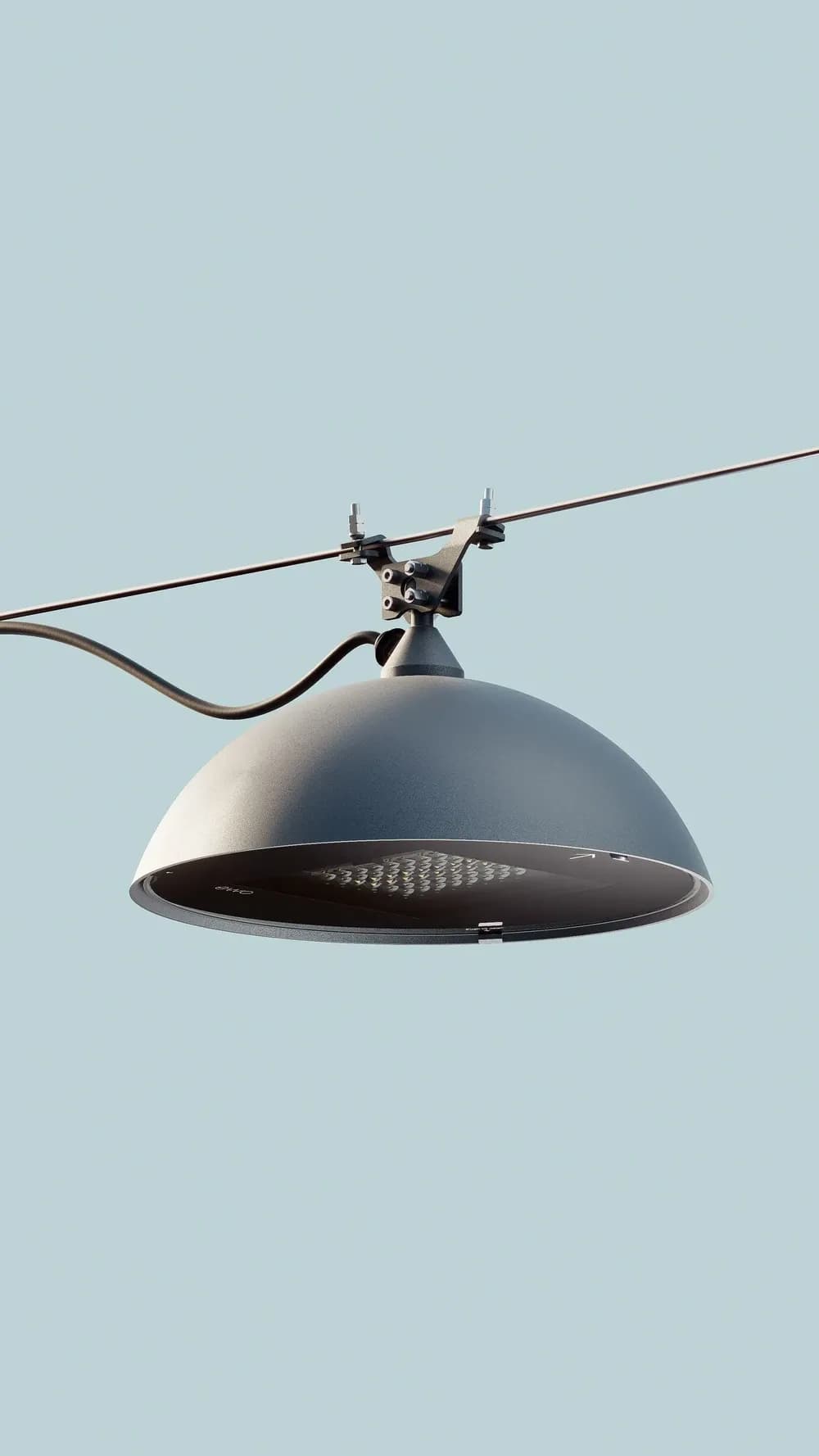

The hemispherical DA luminaire lends urban spaces in various designs a highly precise lighting look and a soft, slightly playful aesthetic.
DA
“DA is a product family that impresses with its looks and intelligence—and with a round design that adds warmth to any context.
What sets DA apart
Compatible with various lenses
The DA pole-mounted luminaire is compatible with the A–Series and T–Series optics (ewoLightTile) for reduced glare and can therefore achieve different beam characteristics.
Solid construction
Housing with low copper content ≤ 0.08% and option to add additional corrosion protection (ewoECP).
Round design
The curved luminaire head makes DA stand out from the other pole-mounted luminaires in the ewo range. It gives the luminaire a minimal, soft appearance that can be optimally integrated into various application areas.
Technical data
A–Series
- Current feed: 200 mA–600 mA, depending on ambient temperature
- Max. luminous flux 14,700 lm
- Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
- Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request
- Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
- Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.
T–Series
- Current feed up to 225 mA, depending on ambient temperature
- Max. Luminous flux 4,600 lm
- Electronic operating device with DALI T8 interface
- Color temperature Tunable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90.
Body of Light
Pole and wall–mounted luminaires

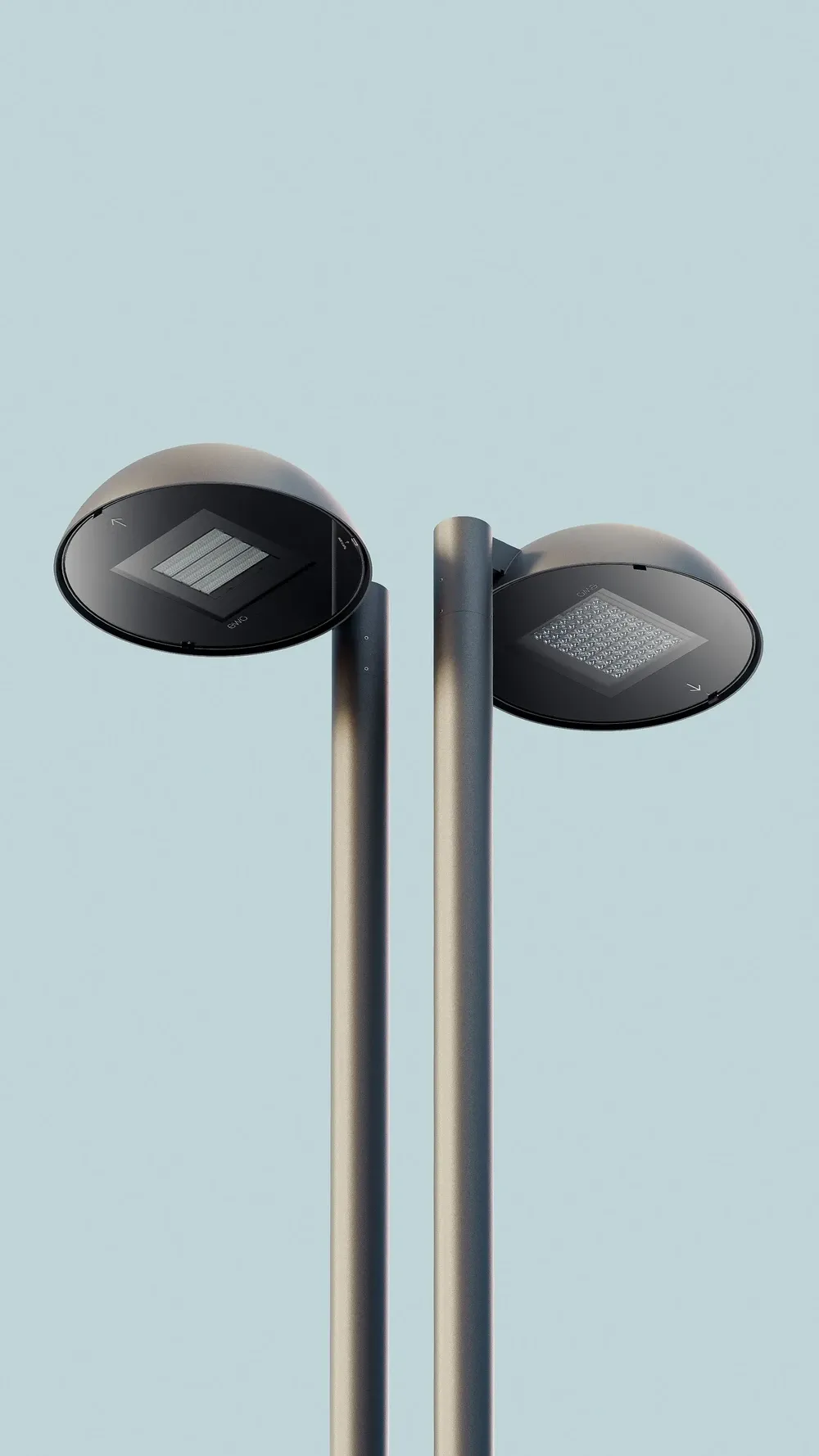

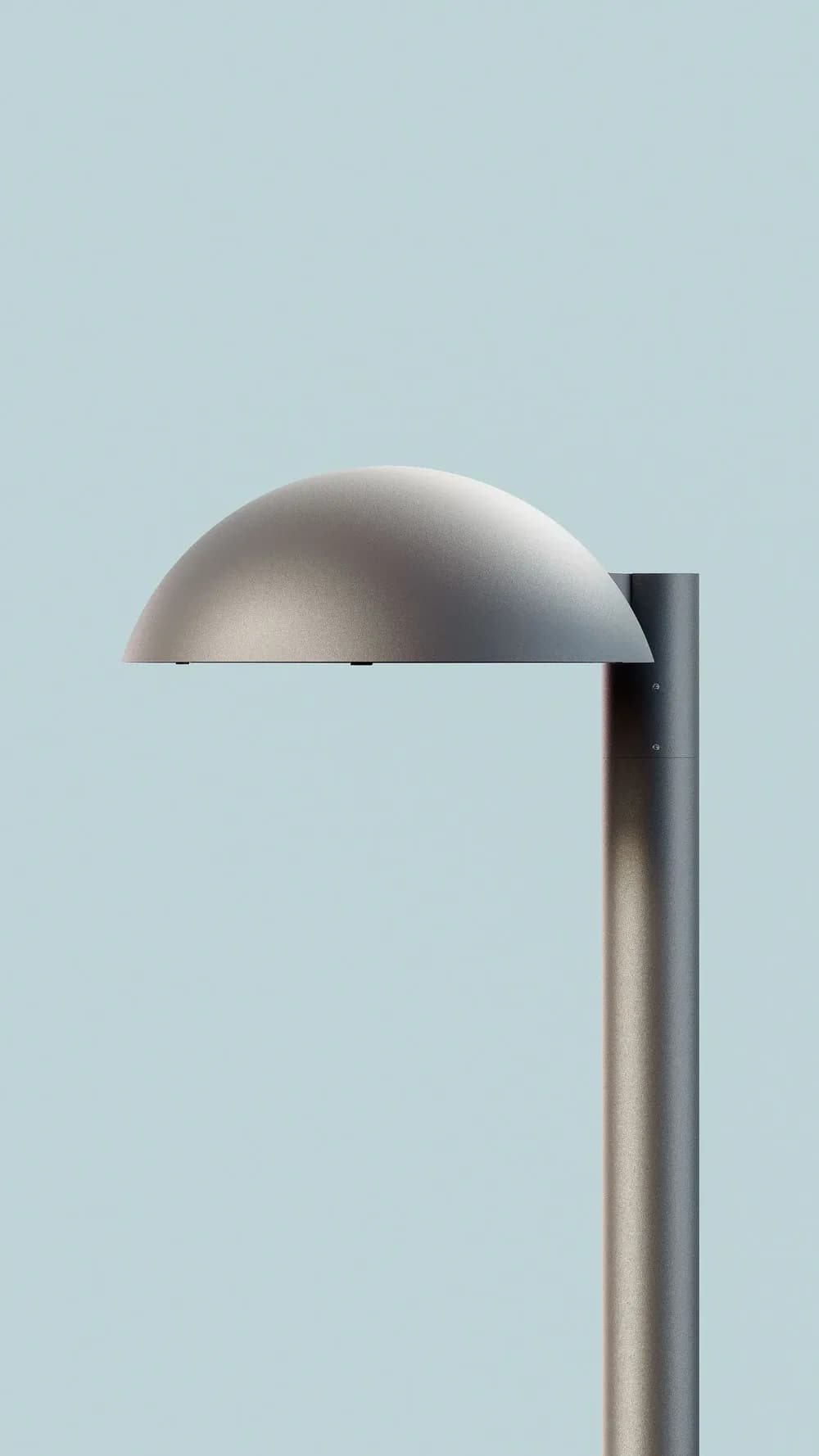

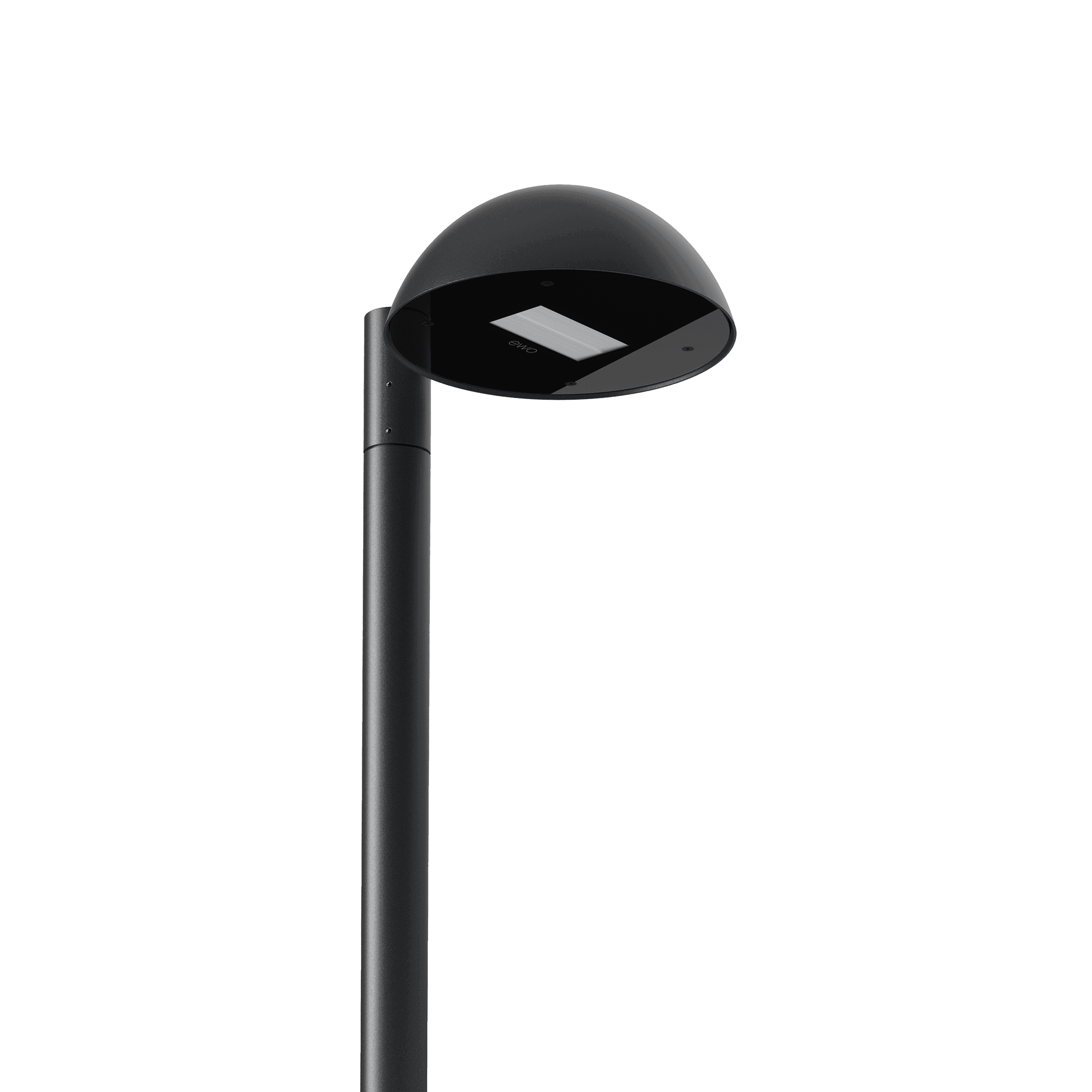

Pole DA
- Mounting Location
- Pole
- Mounting Type
- Pole–mounted
- Product Shape
- Round
- Product Finish
- Powder coated
- Light Color
- Monochrome
- Lighting Application
- General illumination
- Architectural Application
- Urban life
Pole and wall–mounted luminaires

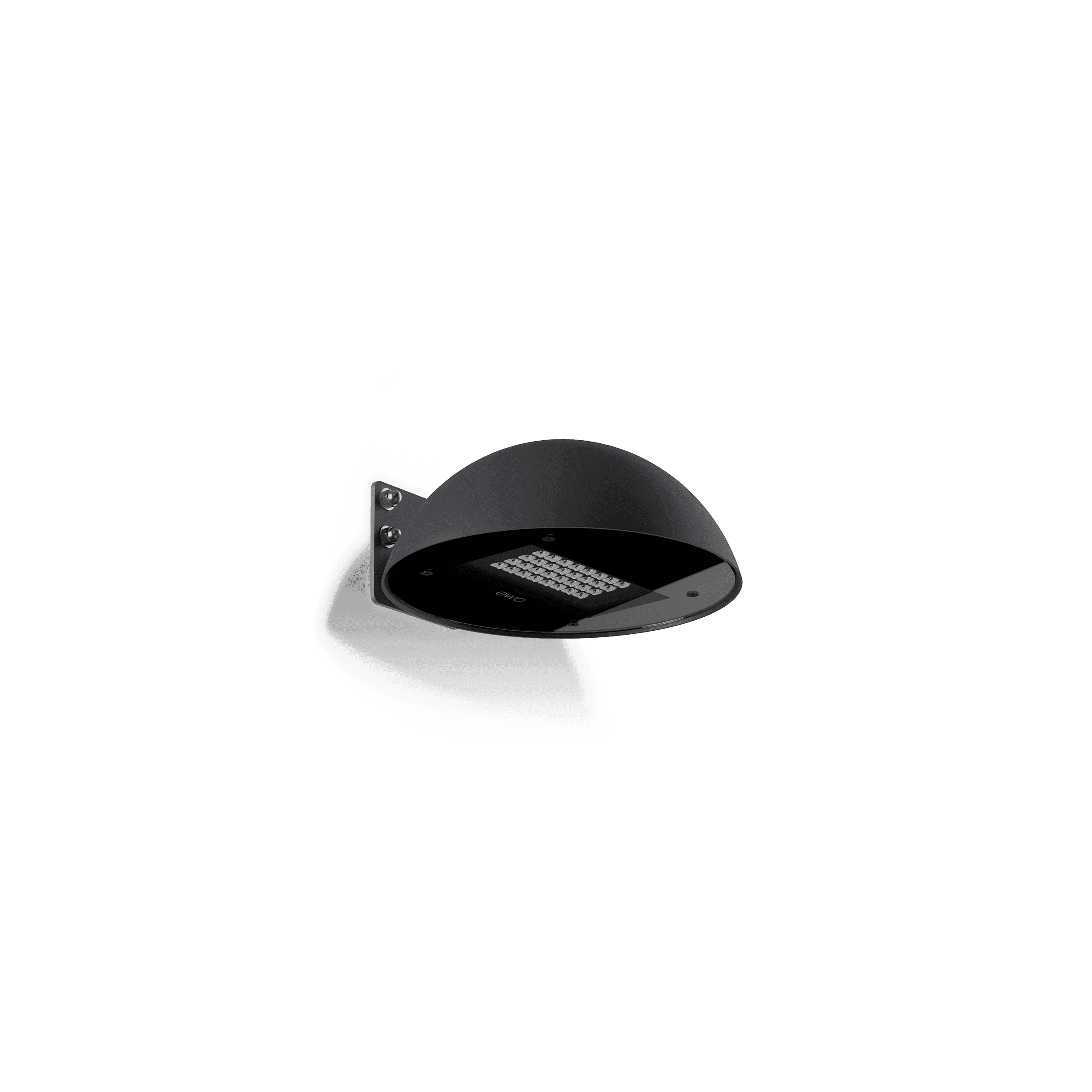

Wall DA
- Mounting Location
- Wall
- Mounting Type
- Surface–mounted
- Product Shape
- Round
- Product Finish
- Powder coated
- Light Color
- Monochrome
- Lighting Application
- General illumination
- Architectural Application
- Urban life
Shape of Light
Thanks to our modular system, the DA product family is compatible with a wide range of light distributions—the A–Series product range alone enables 1,799,866,966 lens combinations for unbeatable illumination. In addition, the light can be further adapted to any requirements using systems such as ewoLightTile and ewoLightLayers.
Intelligence of Light
The DA product family is DALI-compatible and can be connected to intelligent control systems via an internal or external node. In this way, the luminaire can be controlled individually or in groups. With the help of an external Zhaga interface, there is also the option of integration into smart city systems.
Our Product Configurator
Design, light distribution, control—with our product configurator you can adapt our luminaires to the requirements of your project.
DA downloads
Would you like to find out more about DA? Here you will find all product-specific documents, from images to data sheets.
