R–System gen4

The renowned family for lighting large areas continues to evolve. May we introduce? The new generation.

The improved, fourth generation of the R–System family combines reliability and increased performance: With new lenses and drivers, R–System gen4 reflects the market’s most important demands in a high-performance, flexible product family with great modularity.

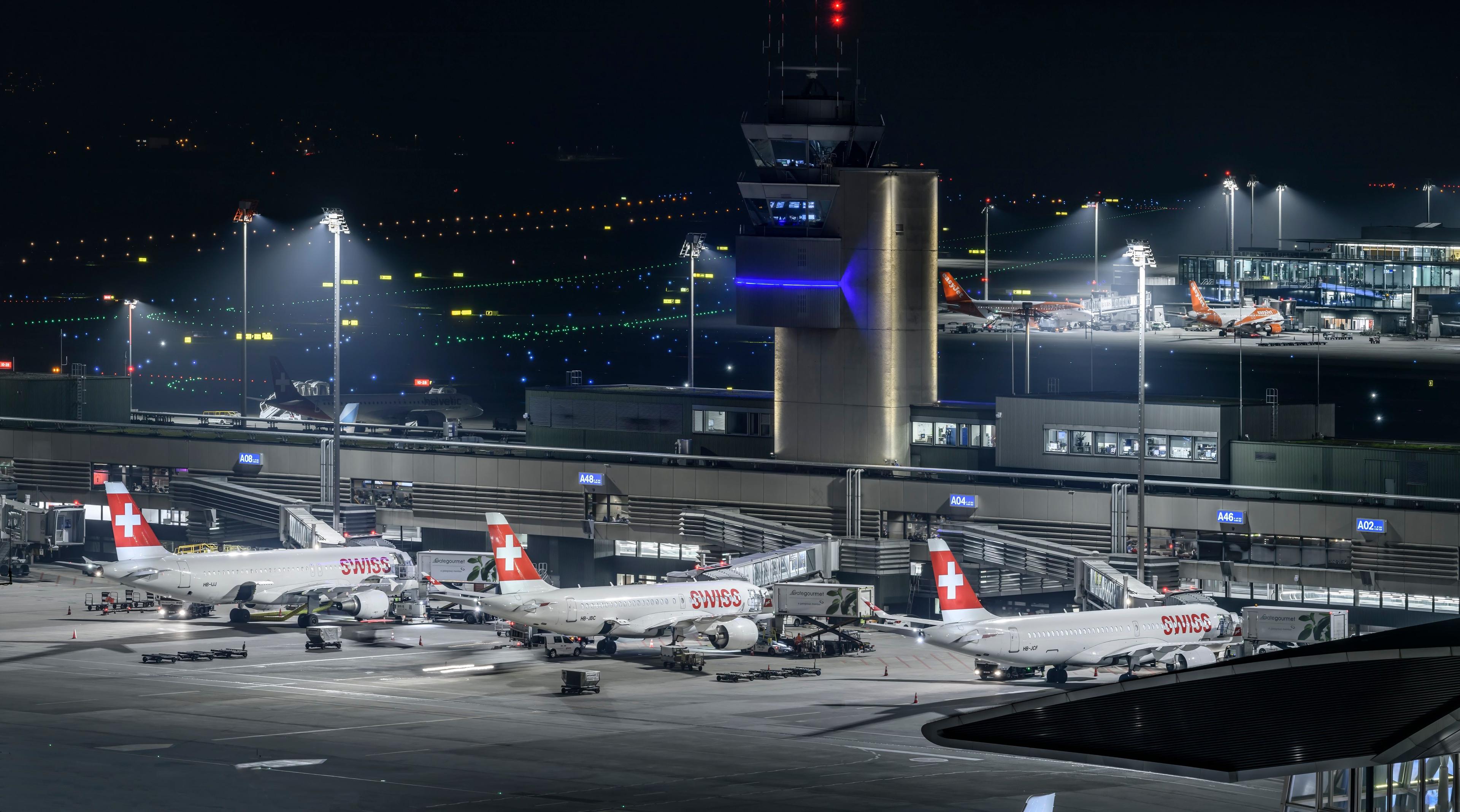

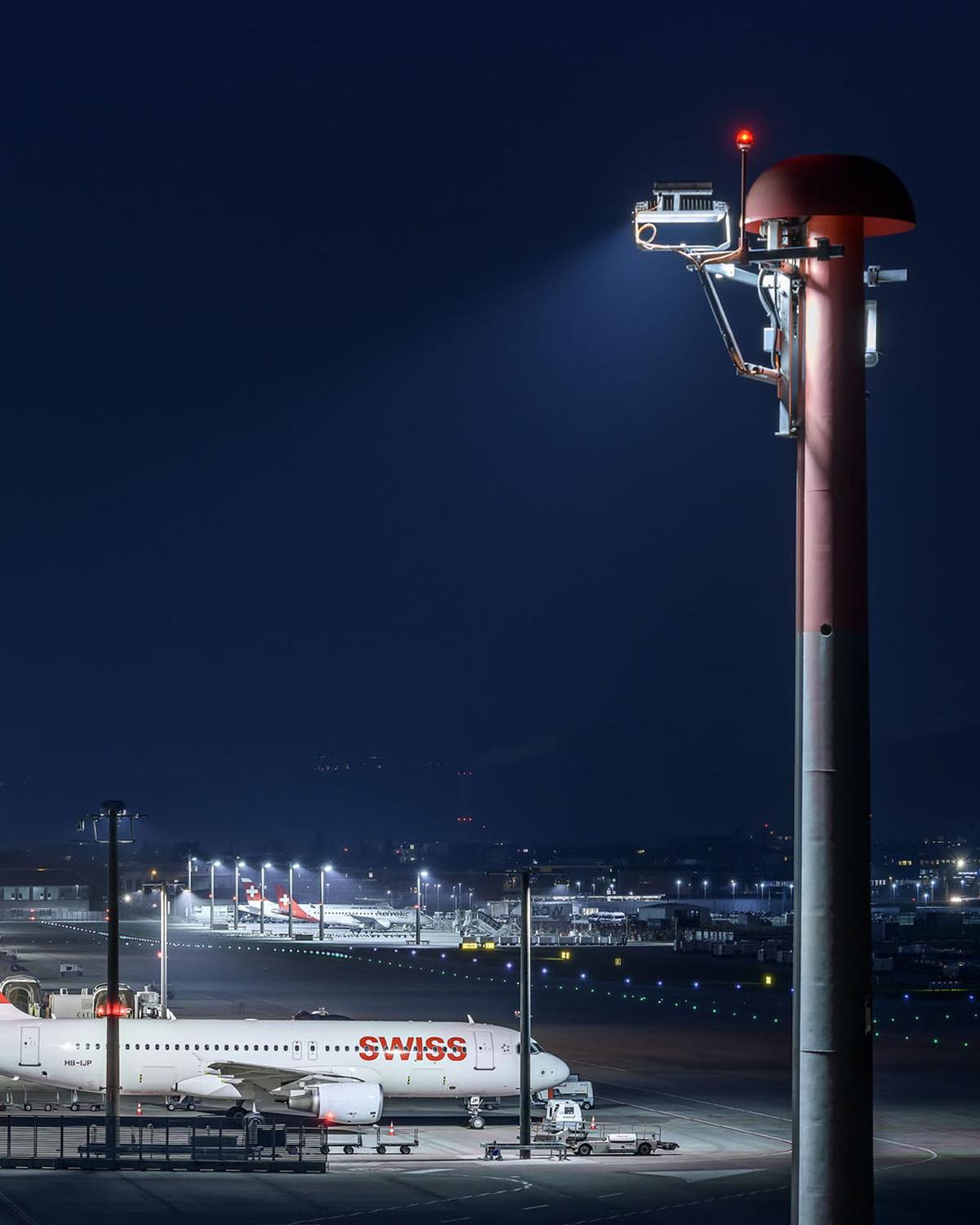

  • New lenses AP10 for a better light flow joining the apron lighting masterpiece EP09

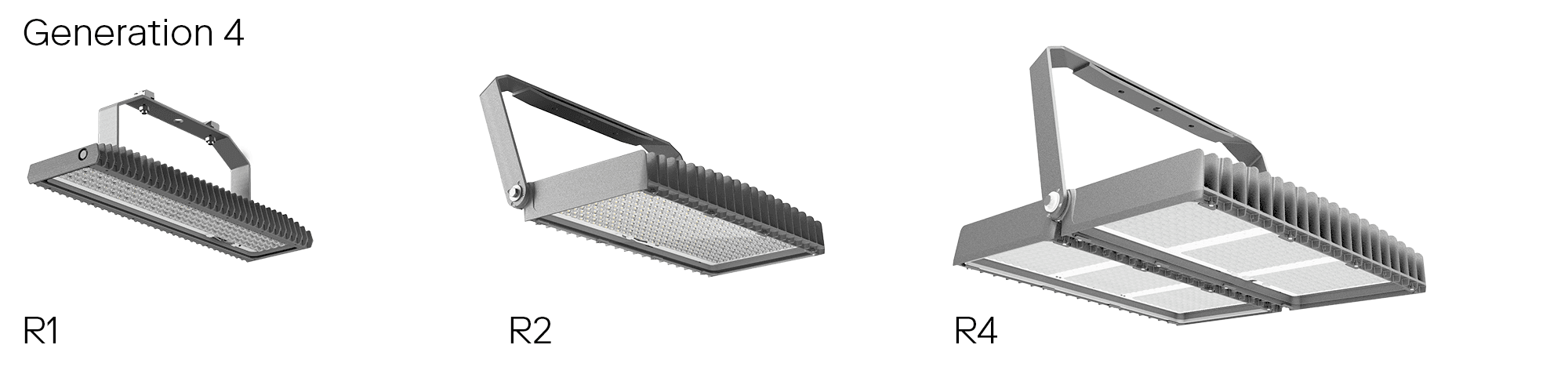

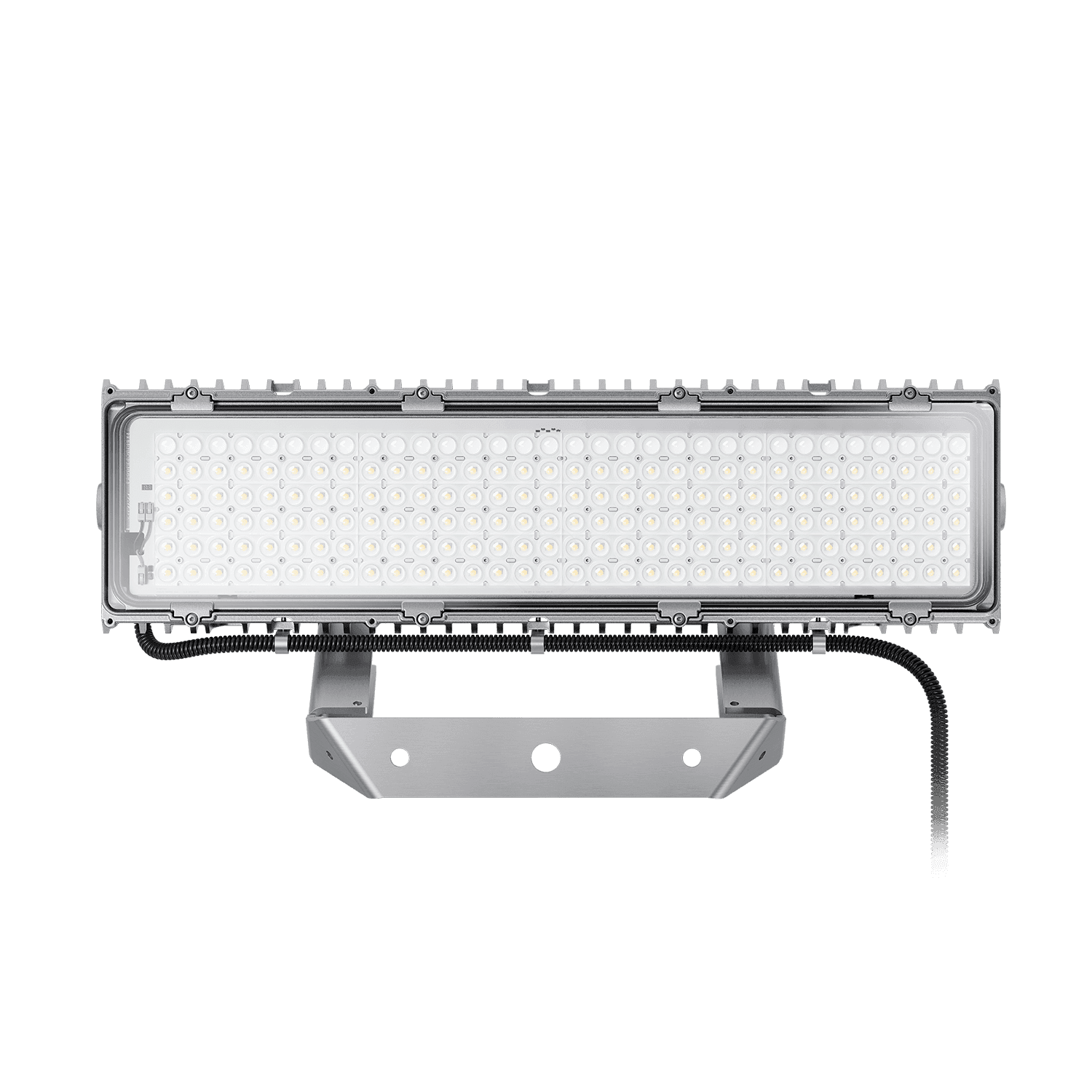

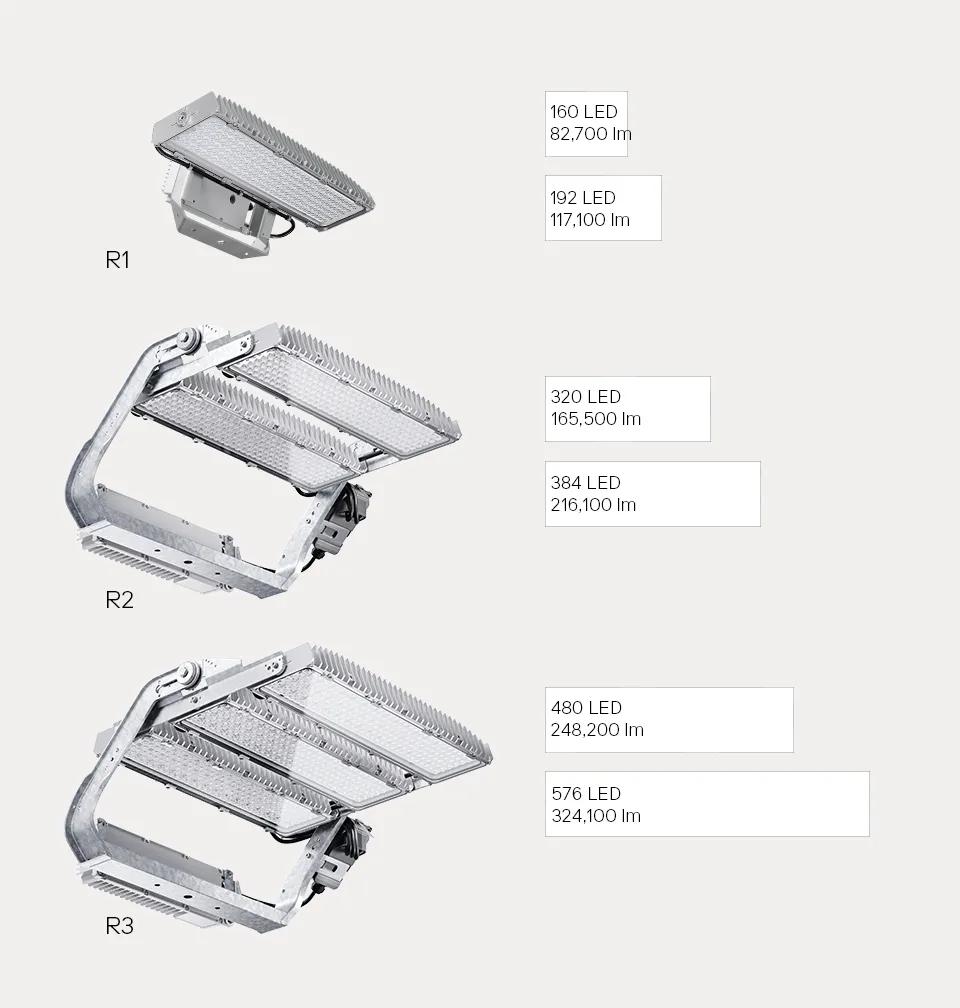

  • R1 improved up to 70 klm to have a compact solution for street, area and sport applications
  • R2 with 336 LEDs achieves a light flux of 157 klm, replacing low-current R4 configurations at a significantly better price
  • New remote driver IP66 with power supply up to 400 V
  • 3,000 K (CRI ≥ 70), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70/80/90), other combinations of CCT/CRI/TLCI available upon request


The outcome is a compact product family that can meet our customers’ expectations even better.

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.



ewo srl - via dell'Adige 15 - IT-39040 Cortaccia (BZ) - T +39 0471 623087 - mail@ewo.com - P.IVA IT 01603000215

HEADLINE
PRODUCT VARIANT
Lighting element
Lighting distribution
Lightlayer
The photometrical files are generated with each download new,
and are therefore up to date. Estimated time:
select all
unselect all
Colour temperature
Tuneable White

Luminous Flux
No result is available for this selection. Please change the luminous flux or light color temperature.
FINAL COMBINATIONS
DOWNLOAD

alertCheckContainer

alertText

DOWNLOAD

abbrechen

alertContainer

alertText

ok

Downloads

All planning materials
Pictures
Data sheets

Configurator

1) Configurator

Would you like to start a detailed product configuration?
We invite you to proceed using our new configurator.

2) Photometric Configurator

Would you like to obtain IES or LDT files as quickly as possible?
