R–System gen4 R1

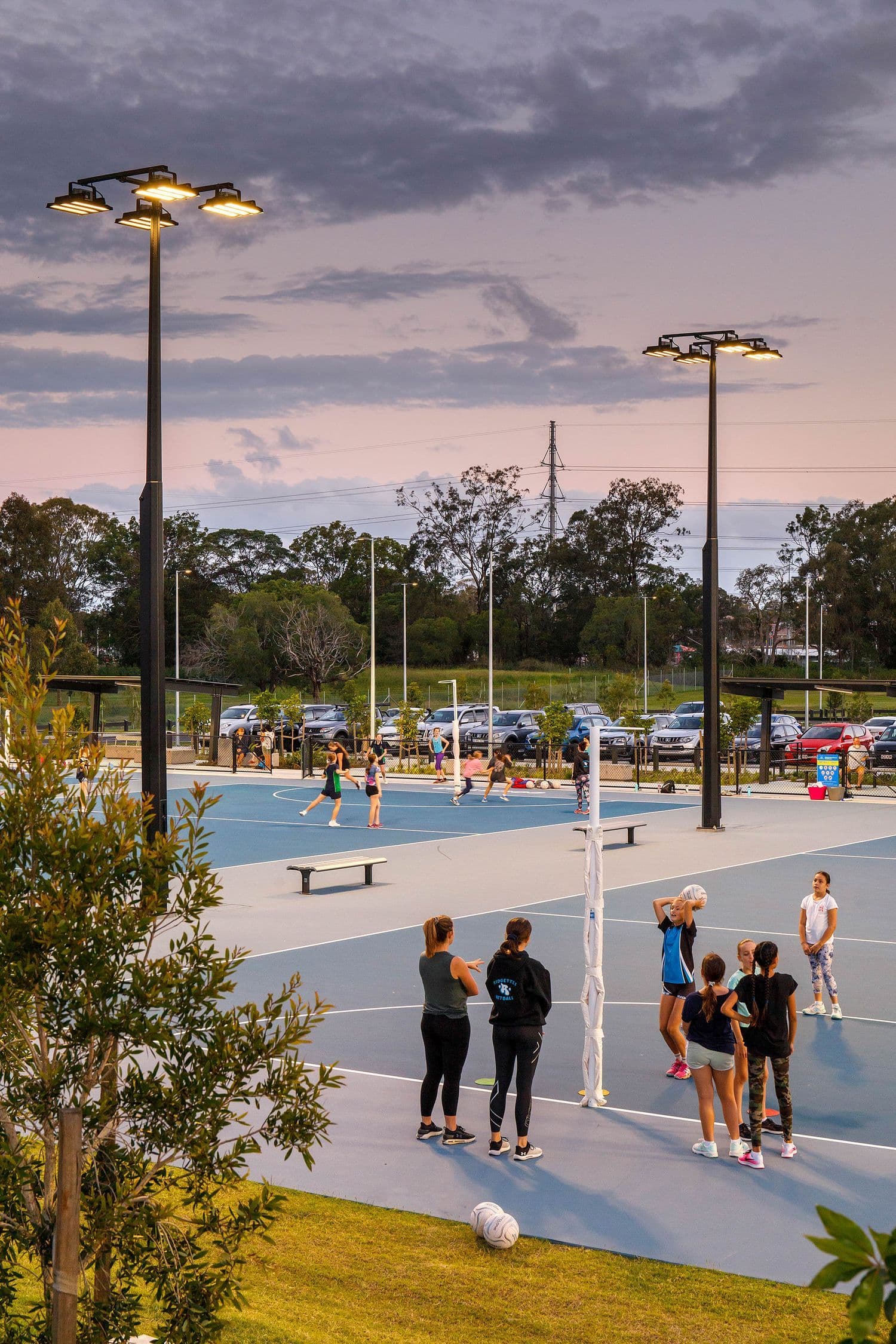

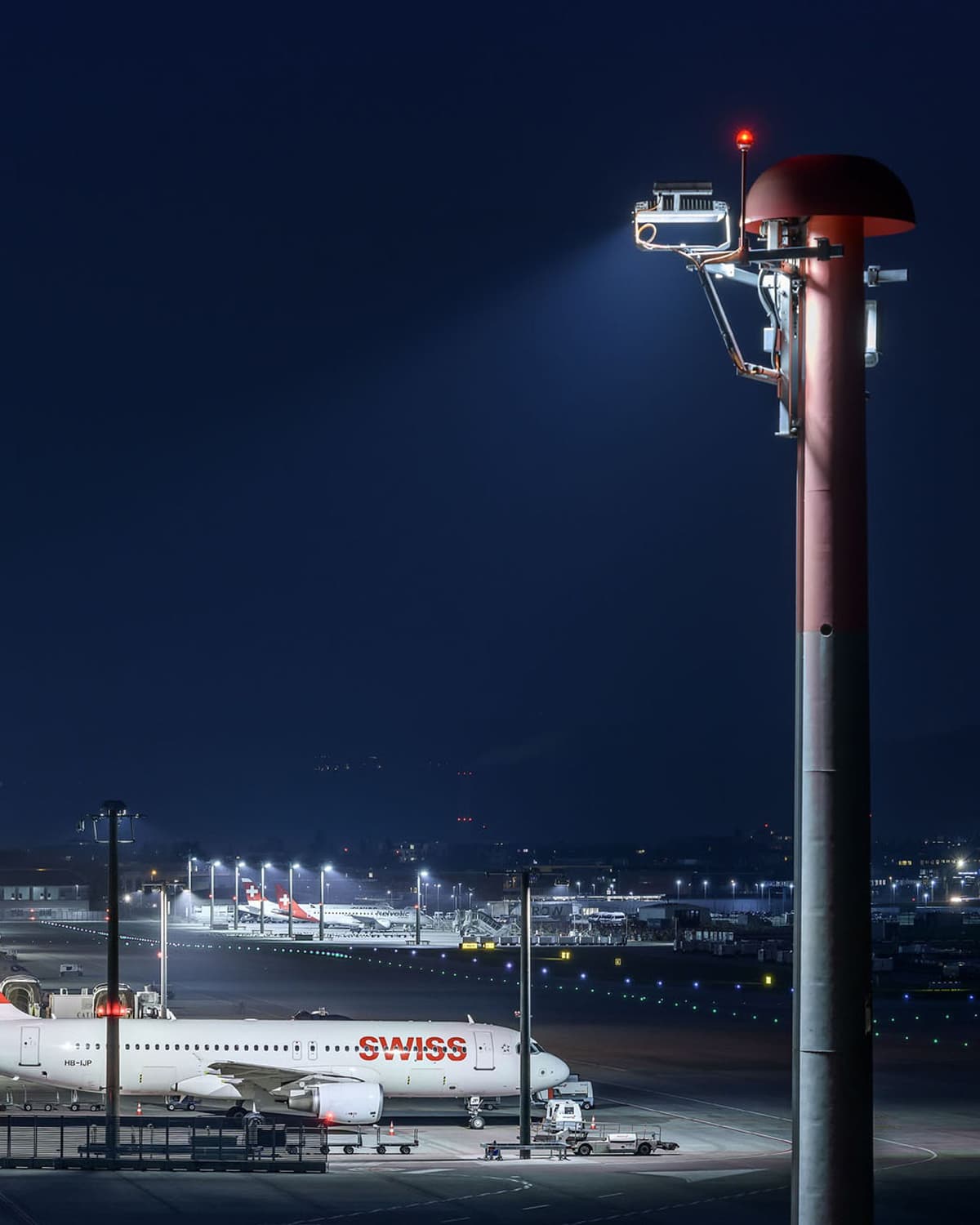

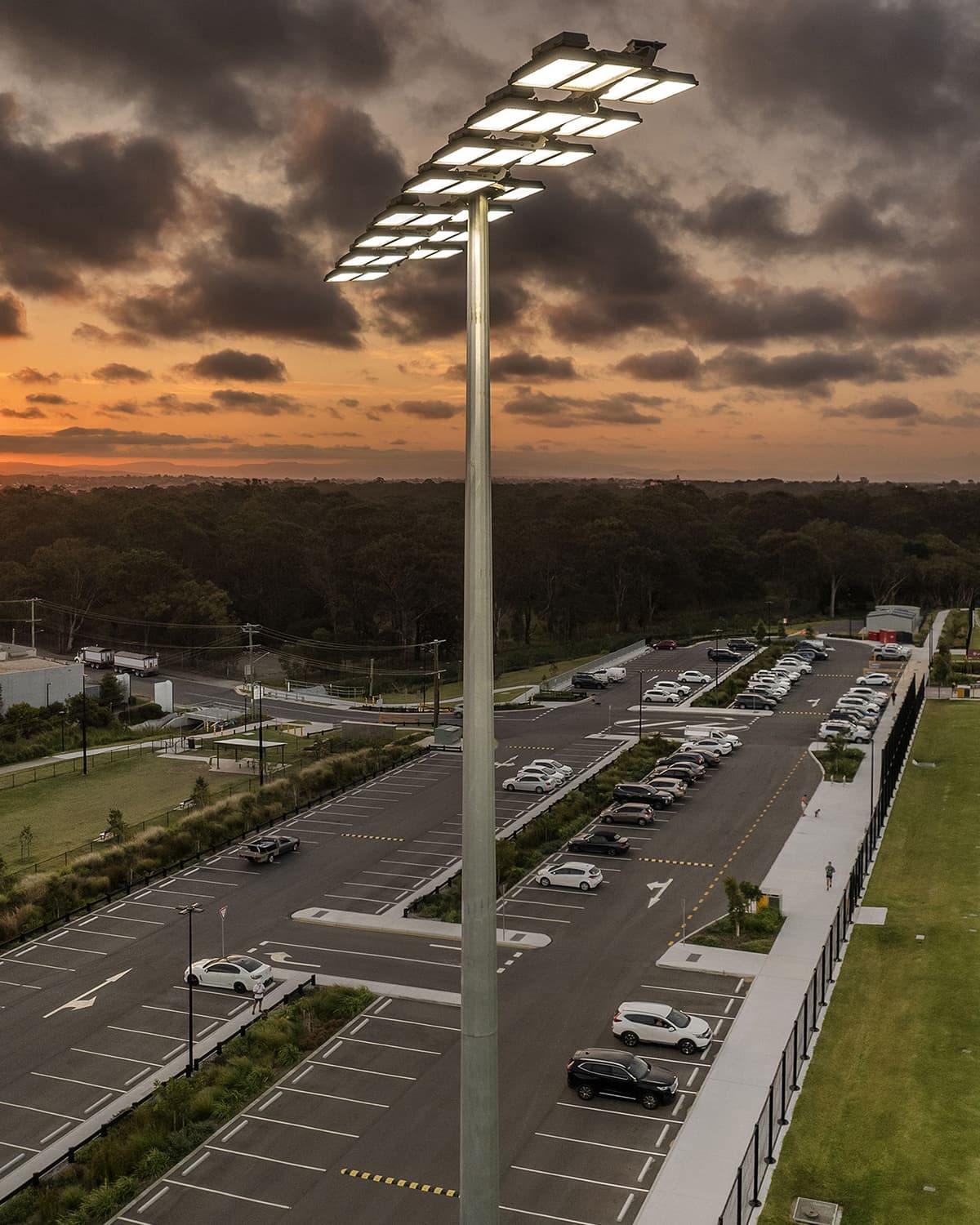

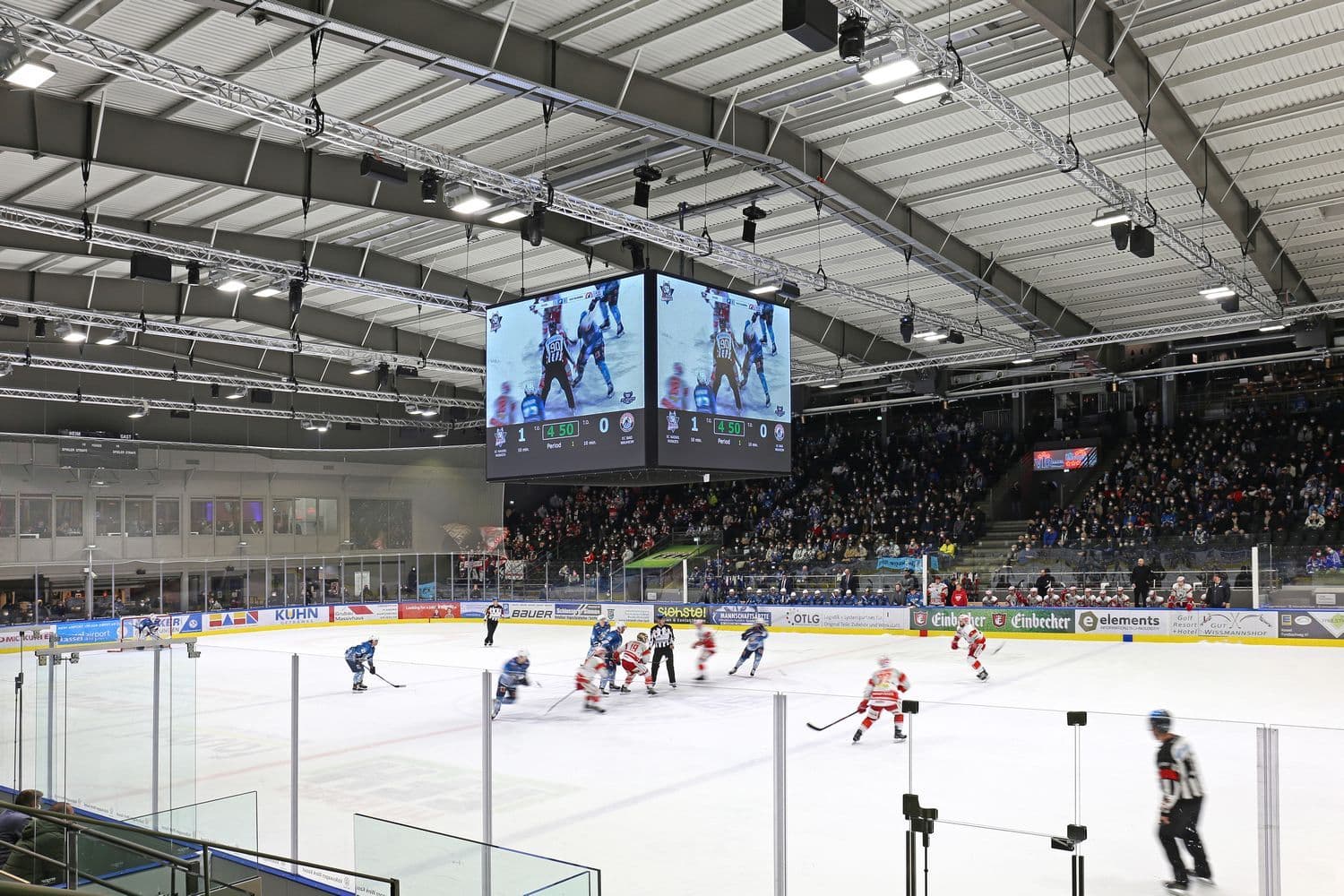

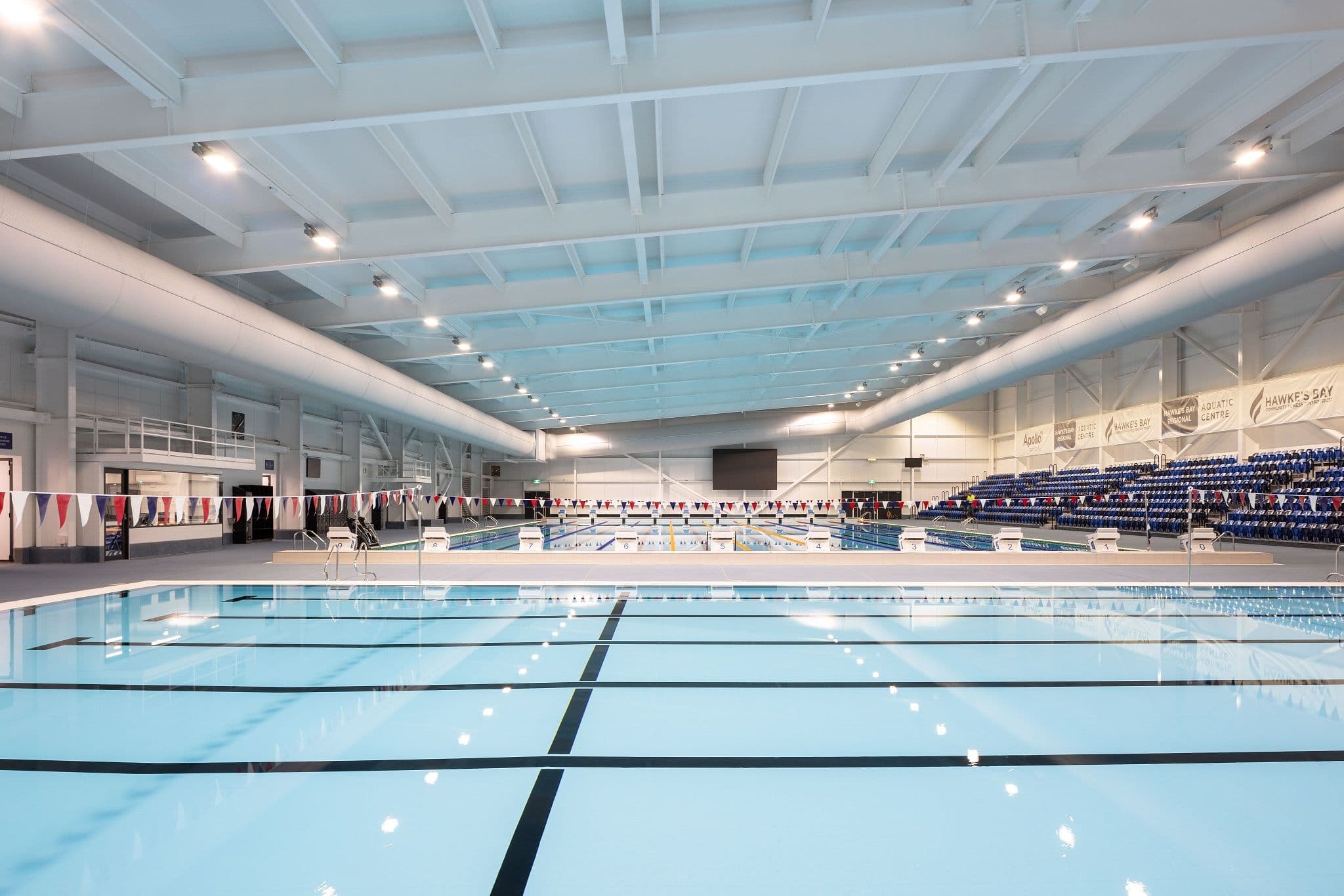

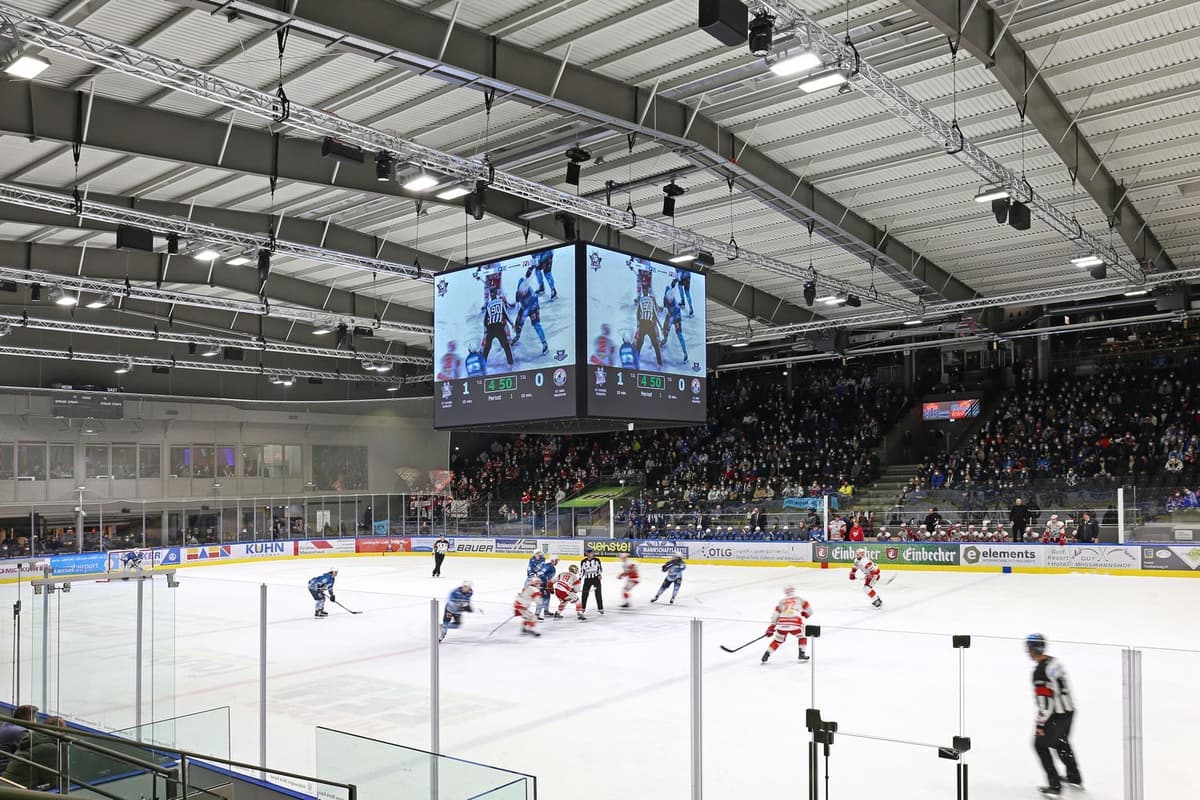

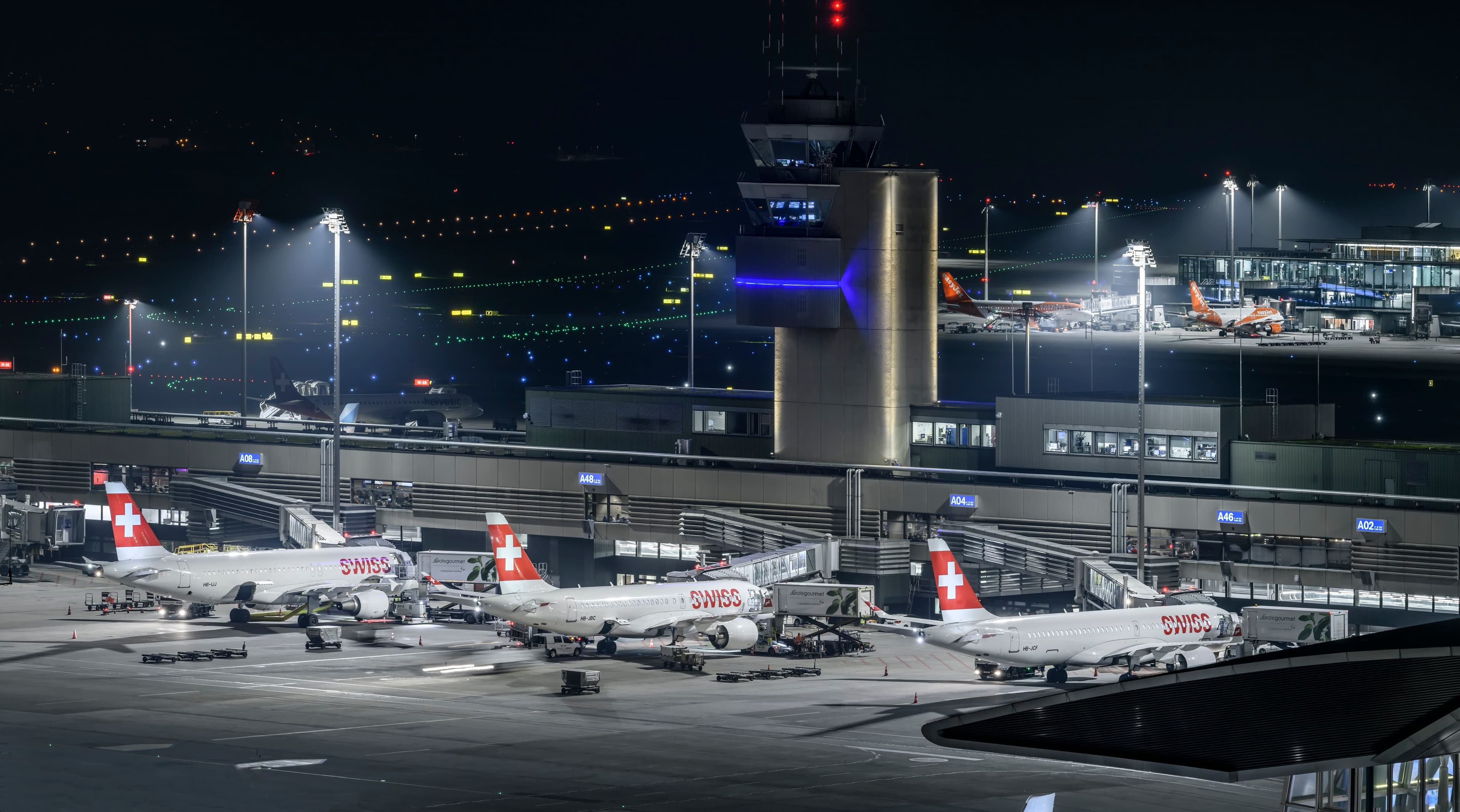

The tried-and-tested R–System R1 has been optimized for applications such as traffic areas as well as small sports areas (tennis courts etc.).

  • Compatible with our A–Series
  • Various light distributions for large-area, high bay or street lighting
  • Current feed: up to 1,200 mA (from –40°C to +55° C)
  • Max. luminous flux: 66,600 lm
  • Smart Lighting: control modules for different communication standards available upon request
  • Driver with DALI or DMX-RDM protocol
  • Color temperatures: 3,000 K, 4,000 K, 5,700 K
  • Standard CRI ≥ 70, CRI ≥ 80 upon request
  • Starting from May 2024, optionally, new multipurpose bracket

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.
