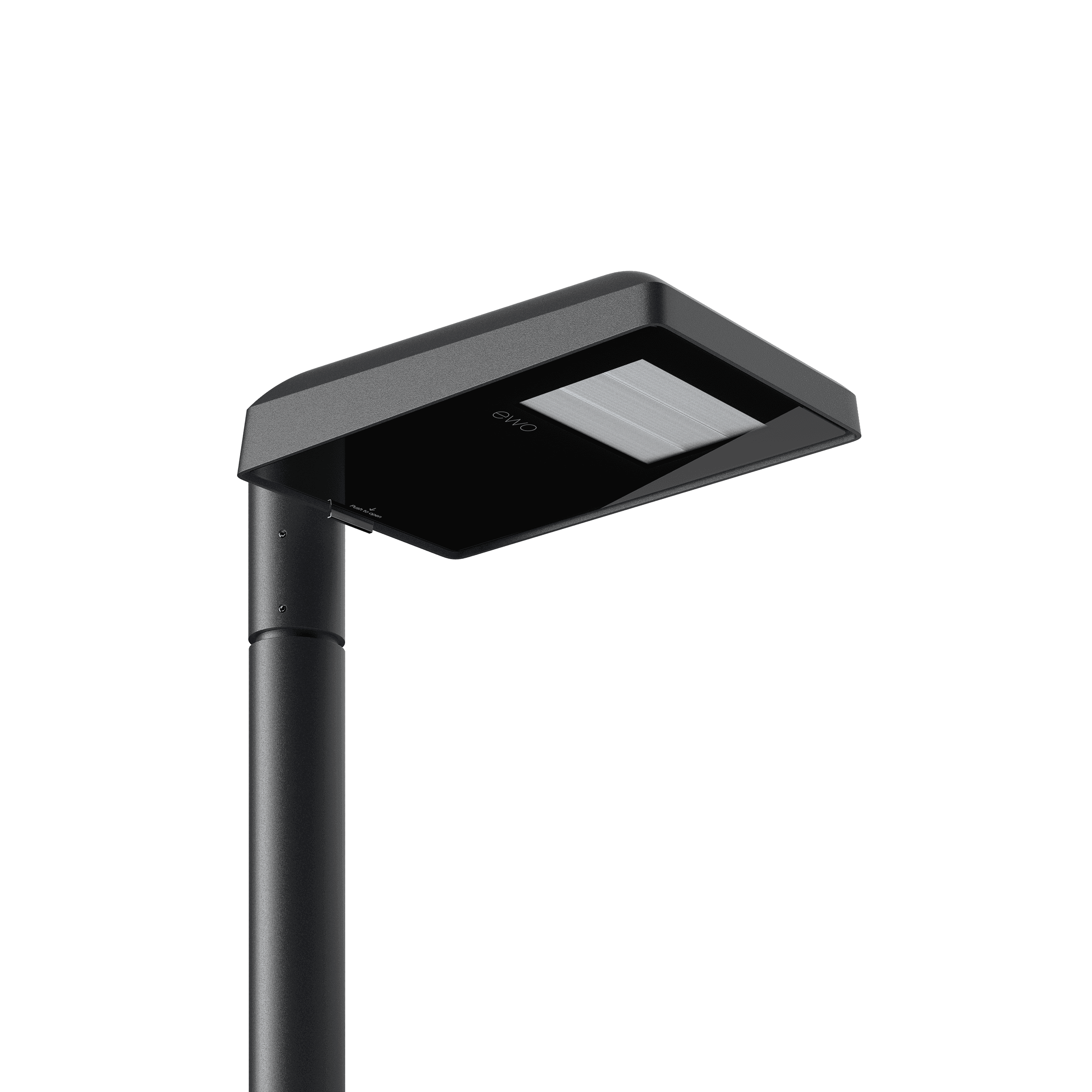

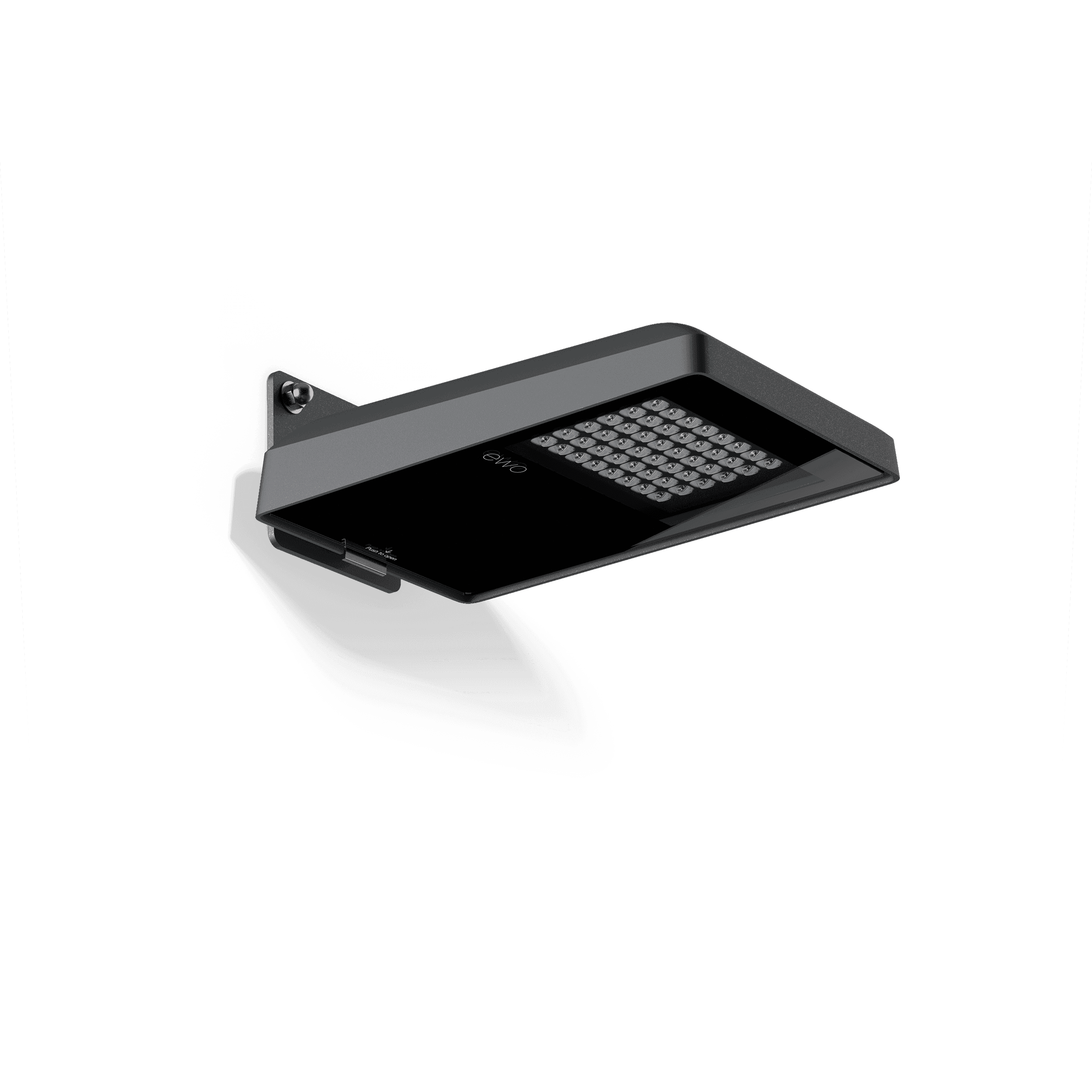

F–System XS

This product is compatible with A–Series and T–Series (ewoLightTile), providing various light distributions for area, high bay, street or walkway lighting.

Designer: Jörg Boner
Year: 2016

A–Series

  • Current feed: 200 mA–700 mA, depending on ambient temp (F3–XS max. 650 mA)
  • Max. luminous flux 10,900 lm
  • Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request
  • Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
  • Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
  • Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.


T–Series

  • Current feed up to 225 mA, depending on ambient temperature
  • Max. Luminous flux 2,700 lm
  • Color temperature Tunable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90
  • Electronic operating device with DALI T8 interface.

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.



F–System S 1
F–System S 2
F–System S 3
F–System S 4
F–System S 5
F–System S 6
F–System S 7
F–System S 8
F–System S 9
1 2 3 4 5 6 7 8 9

F–System S

This product is compatible with A–Series and T–Series (ewoLightTile), providing various light distributions for area, street, walkway lighting and lighting of pedestrian crossings.

Designer: Jörg Boner
Year: 2015

A–Series

  • Current feed: 200 mA–700 mA, depending on ambient temp (F5 max. 600 mA)
  • Max. luminous flux 17,100 lm
  • Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
  • Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon reques
  • Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
  • Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.


T–Series

  • Current feed up to 225 mA, depending on ambient temperature
  • Max. luminous flux 4,600 lm
  • Color temperature Tunable White 2,200-6,500 K, standard CRI ≥ 80, upon request CRI ≥ 90
  • Electronic operating device with DALI T8 interface.

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.



F–System M 1
F–System M 2
F–System M 3
F–System M 4
F–System M 5
F–System M 6
F–System M 7
1 2 3 4 5 6 7

F–System M

This product is compatible with A–Series and T–Series (ewoLightTile), providing various light distributions for high bay or street lighting.

Designer: Jörg Boner
Year: 2015

A–Series

  • Current feed: 200 mA–650 mA, depending on ambient temp (F10 max. 600 mA)
  • Max luminous flux 34,200 lm
  • Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request
  • Electronic operating device with DALI interface, 1–10 V or stand-alone programming
  • Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
  • Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.


T–Series

  • Current feed up to 225 mA, depending on ambient temperature
  • Max. Luminous flux 9,100 lm
  • Color temperature: Tunable White 2,200-6,500 K Standard CRI ≥ 80, upon request CRI ≥ 90
  • Electronic operating device with DALI T8 interface.

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.
