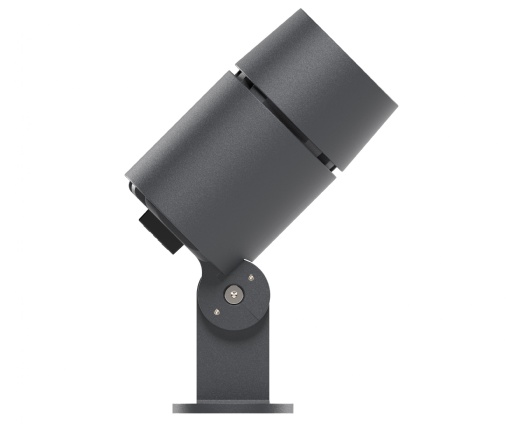

C125 Integral 1

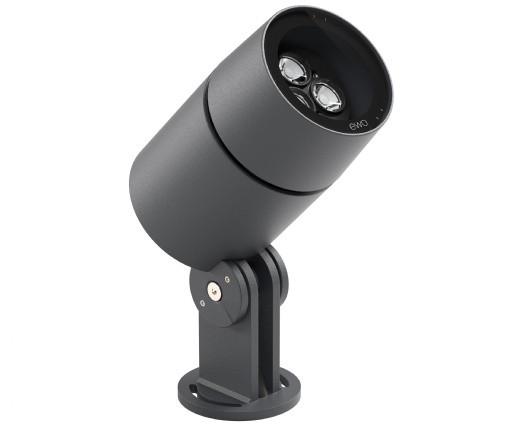

C125 Integral 2

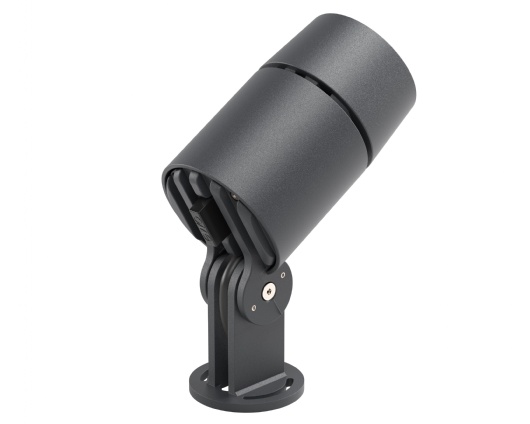

C125 Integral 3
C125 Integral 4
1 2 3 4

C125 Integral

    The first application agnostic luminaire. A master in transformation in form and function, thanks to its incredible modularity. Simplified electrical connection, see driver integrated in projector.

    A–Series
  • 6 high-power LEDs
  • Driver integrated, current feed: max. 1,000 mA
  • Max. Luminous Flux: 2,200 lm
  • Color Temperatures: 2,200 K, 2,700 K, 3,000 K, 4,000 K (CRI ≥ 80)
  • Other color rendering indexes available upon request

    E–Series
  • 3 high-power LEDs
  • Driver integrated, current feed: max. 1,000 mA
  • Max. Luminous Flux: 1,100 lm
  • Color Temperatures: 2,200 K, 2,700 K, 3,000 K, 4,000 K (CRI ≥ 80)
  • Other color rendering indexes available upon request

    RGBW
  • 3 high-power LEDs
  • Driver integrated, current feed: max. 250 mA
  • RGB + 2,200 K or RGB + 4,000 K (CRI ≥ 80)
  • Other color rendering indexes available upon request

    Tunable White
  • 3 high-power LEDs
  • Driver integrated, current feed: max. 350 mA
  • 2,200–4,000 K or 3,000–5,000 K (CRI ≥ 80)
  • Other color rendering indexes available upon request

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.
