Product Family

Thanks to its modular approach, the Chameleon family not only enables high-quality lighting solutions, but also impresses with its sustainable product design.

Chameleon

“Inspired by nature, it is Chameleon's highly adaptive capabilities that define its innovative design, combining versatility and simplicity in an inimitable way.

What sets Chameleon apart

Suitable for lighting any outdoor environment

Thanks to the wide range of available luminous fluxes (up to 43,000 lm) and light distributions (symmetrical and asymmetrical), Chameleon can be used to illuminate any architecture and landscape—from any distance.

Dynamic lighting with compact housing

In addition to the standard color temperatures of 2,200 K, 2,700 K, 3,000 K, 4,000 K (CRI≥80), Chameleon can imitate daylight using tunable white or emit colored light using RGBW. Color mixing creates numerous other possibilities.

Master of Transformation

Chameleon is very discreet by nature, the projector has a clean design with no visible screws. However, if desired, it can be completely transformed using internal, external and mounting accessories.

Technical data

Available in 5 sizes with diameters from 90 mm (C90) to 365 mm (C365)
Luminous flux from 297 lm to 34,800 lm
C90 to C260 available with external (slice versions) and integrated driver (integral versions)
C90 to C260 available with optics from the A-Series and E-Series.
C210 also available as a GOBO projector.
Monochrome color temperatures 2,200 K, 2,700 K, 3,000 K, 4,000 K (CRI ≥ 80) other color rendering indexes available on request.
RGBW (RGB + 2,200 K or RGB + 4,000 K, both CRI ≥ 80) available for sizes C125, C165, C210 and C260, other color rendering indexes available on request.
Two tunable white versions (2,200-4,000 K or 3,000-5,000 K both CRI ≥ 80) available for sizes C125, C165, C210 and C260, other color rendering indices on request.

Body of Light

Projectors
Wall Chameleon

Wall
Bracket
Round
Powder coated
Monochrome
General illumination
Architecture and the arts

Projectors
Pole-mounted Chameleon

Pole
Pole–mounted
Round
Powder coated
General illumination
Architecture and the arts

Projectors
Ground Chameleon

Ground
Ground–spike
Round
Powder coated
General illumination
Architecture and the arts

Floodlights
C260/C365 Chameleon

Ground
Surface–mounted
Round
Powder coated
Monochrome
General illumination
Architecture and the arts

Projectors
Chameleon GOBO

Ground–spike
Round
Powder coated
Monochrome
Gobo projection
Architecture and the arts

Accessories

Shadow Sail

Heritage Sail

Ground Spike

V-Notch

Transparent Snoot

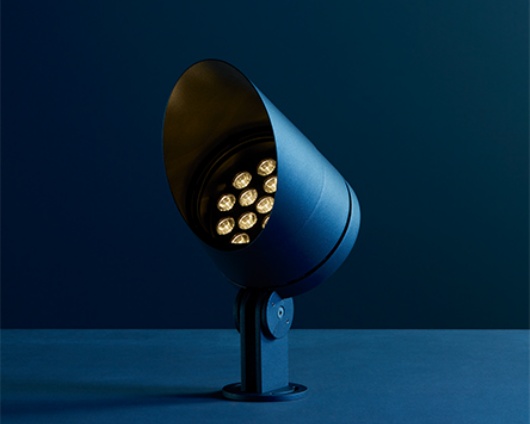

Full Snoot

Filter Elements

Shape of Light

Chameleon is compatible with over ten different light distributions, all of which improve people's well-being in public spaces.

These include two specially developed optical developments: firstly, two-levels light guiding optics, which ensure perfect color mixing within the lens and optimum color uniformity even at short distances, and secondly, a spot lens with a remarkable beam angle of 4°.

Chameleon is therefore the most compact and intelligent projector that offers dynamic lighting with optical color mixing and maximum beam angles of 12° .

Intelligence of Light

Chameleon is available with an integrated or externally mounted driver. This makes the projector intelligent in no time at all: it can be integrated into smart control systems and smart city technologies. This allows the luminaires to be controlled individually or in groups at the touch of a button.

Chameleon C210 Slice in blue with EG06 lenses

Chameleon RGBW, staged by the artist duo beierle.goerlich

Chameleon C210 GOBO

The C210 version of the award-winning Chameleon projector is also available as a GOBO projector. Project flawless images, logos, texts or frame facades in all imaginable colors onto even distant finishes—thanks to an imaging optical system.

Simple installation

Colorful highlighting of facades

Frame façade

Designed by GECKELER MICHELS

The designer duo GECKELER MICHELS from Berlin created Chameleon. They share our high standards of quality and innovation and were therefore the ideal partners for the development of this forward-looking luminaire in terms of design and technology.
