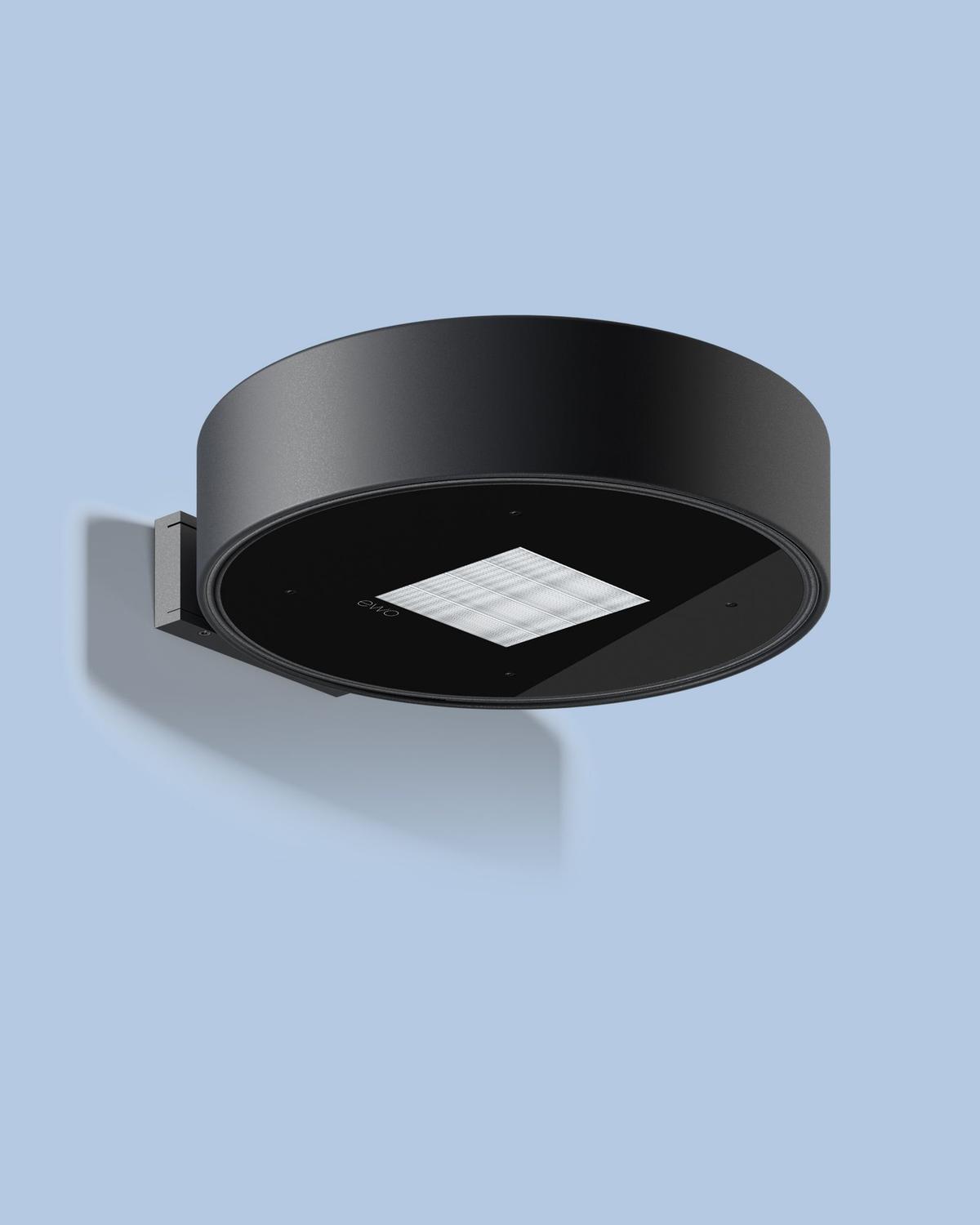

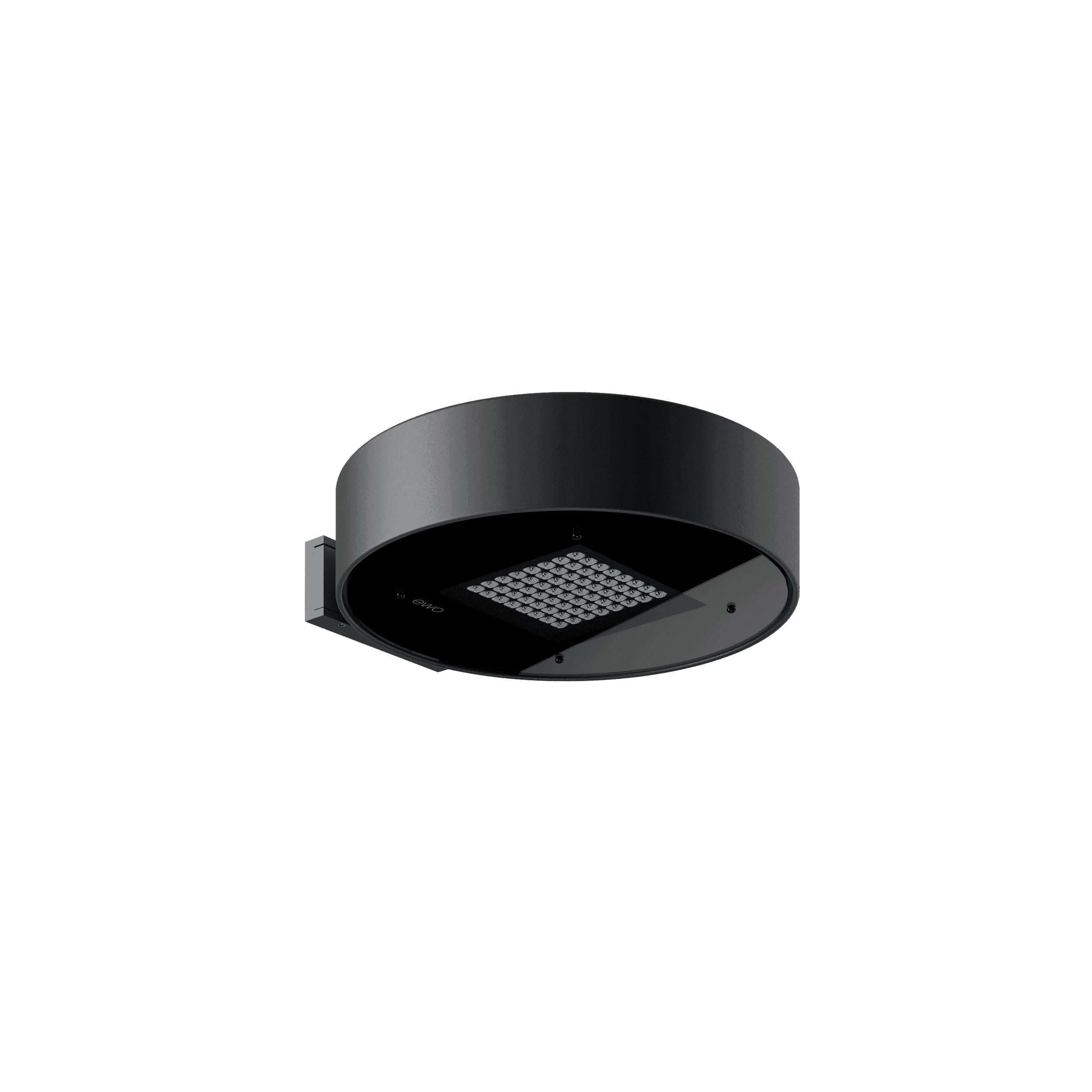

CO - WALL MOUNT
- Housing accommodates up to 5 LED lighting units (LED Board: 16 / 32 / 48 / 64 / 80 LED)
- Current feed: 200 mA–500 mA, depending on ambient temperature
- Electronic operating device with DALI interface, 1–10 V or stand-alone programming
- Various light distributions for area, high bay, street or walkway lighting
- AH02, AP07, AS06, AS07, AS08 (also available in satiné version)
- Lens made from PMMA, with aluminum support plate
- 2 model variants: CO500/CO600
- Housing made of aluminum, wall connection by means of flange plate in aluminum and wall anchor in stainless steel, cover in single-pane safety glass (ESG).
- Finish: polyester powder coating, anthracite (DB 703), other colours upon Request
- Colour temperature: Warm white (2,200 K, 2,700 K, 3,000 K), Neutral white (4,000 K), Cool white (5,700 K)
CO ewo offers a wide range of standard model options for each product. Thus, we ensure that we are able to provide the ideal solution to meet any project requirement. The Product Configurator guides you through the various options to help you find the custom lighting system solution for your project.
The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.
Below, simply select your product variants and lenses, and download either the IES or LDT file.
