Product Family
The FA product family is a versatile lighting system that is suitable for all urban spaces and has a consistent design language despite design options.
FA
“The FA product family is as versatile as the requirements of planners. The luminaire range is suitable for illuminating roads, surfaces, sidewalks and road crossings as well as for vertical visual elements.
What sets FA apart
Possibility of integrating EL

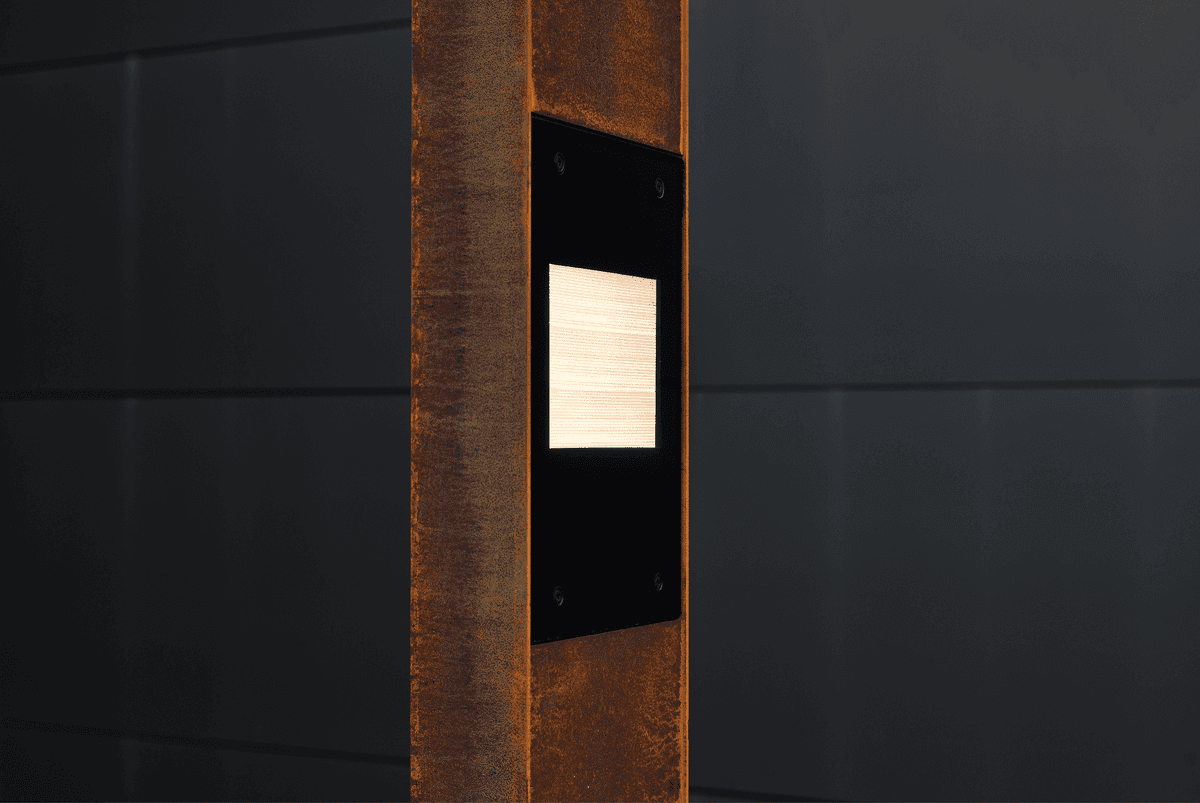

The FA mast top versions (FA770 and FA1070) are also suitable for accommodating the EL module in the column, which represents a unique solution for the project.
Complete family
With pole-top, bollard, wall and ceiling mounted versions, FA is a complete family that maintains a linear, consistent look throughout the project and can easily adapt to any outdoor environment. FA can be powder coated or made from COR-TEN with the option of having no visible screws on the glass. Enclosure with low copper content ≤ 0.08% and the option to add additional corrosion protection (ewoECP).
Flexible Shape of Light
By using up to 5 LED modules (FA1070) and being compatible with the A–Series and T–Series lenses, the FA offers a wide range of luminous fluxes and light distributions as well as the option of adding factory-installed ewoLightLayers such as integrated RBL (backlight shield) and AGR (glare protection).
Technical data
FA770 pole-mounted luminaire with A–Series optics
- Max. luminous flux 18,883 lm
- Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70), CRI ≥ 80 and other color rendering indexes on request
- Electronic operating unit available on request with DALI, 1–10 V interface, standalone programming or line switch
- Features for constant lumen output (CLO) and emergency power operation (AC/DC) on request
- Smart lighting: Control modules for different communication standards can be integrated or supplied externally via Zhaga interface.
FA770 pole-mounted luminaire with T–Series optics
- Max. luminous flux 5,500 lm
- Color temperatures: 2,200 K - 6,500 K, standard CRI ≥ 80, CRI ≥ 90 on request
- Electronic operating unit with DALI T8 interface

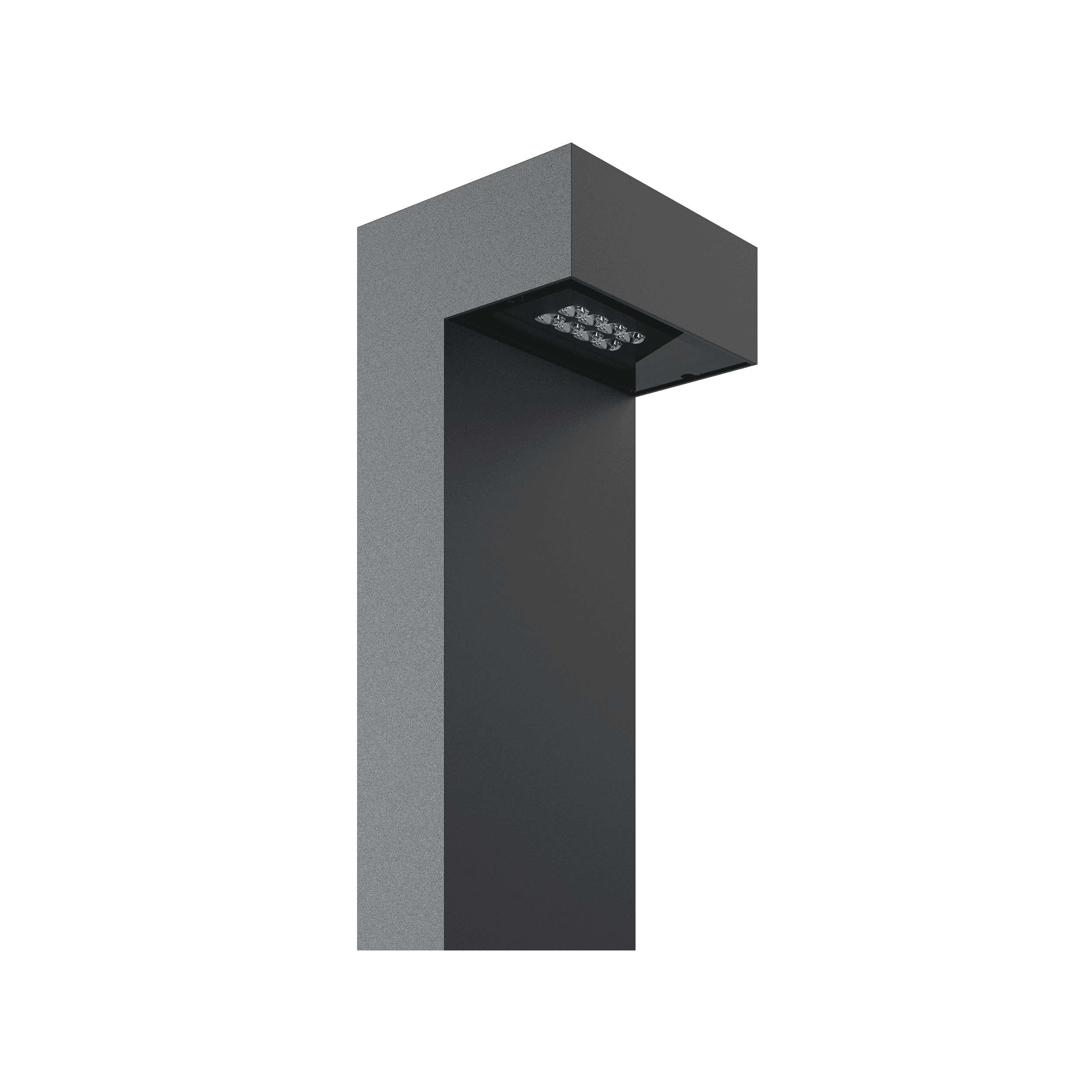

FA170 bollard with A–Series optics
- Max. luminous flux 2,550 lm
- Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70), CRI ≥ 80 and other color rendering indexes on request
- Electronic operating unit available on request with DALI, 1–10 V interface, standalone programming or line switch
- Features for constant lumen output (CLO) and emergency power operation (AC/DC) available on request
- Smart lighting: Control modules for different communication standards can be integrated or provided externally via Zhaga interface.
FA170 bollard with T–Series optics
- Max. luminous flux 1,000 lm
- Color temperatures: 2,200 K - 6,500 K, standard CRI ≥ 80, CRI ≥ 90 on request
- Electronic operating unit with DALI T8 interface
Body of Light
Bollards

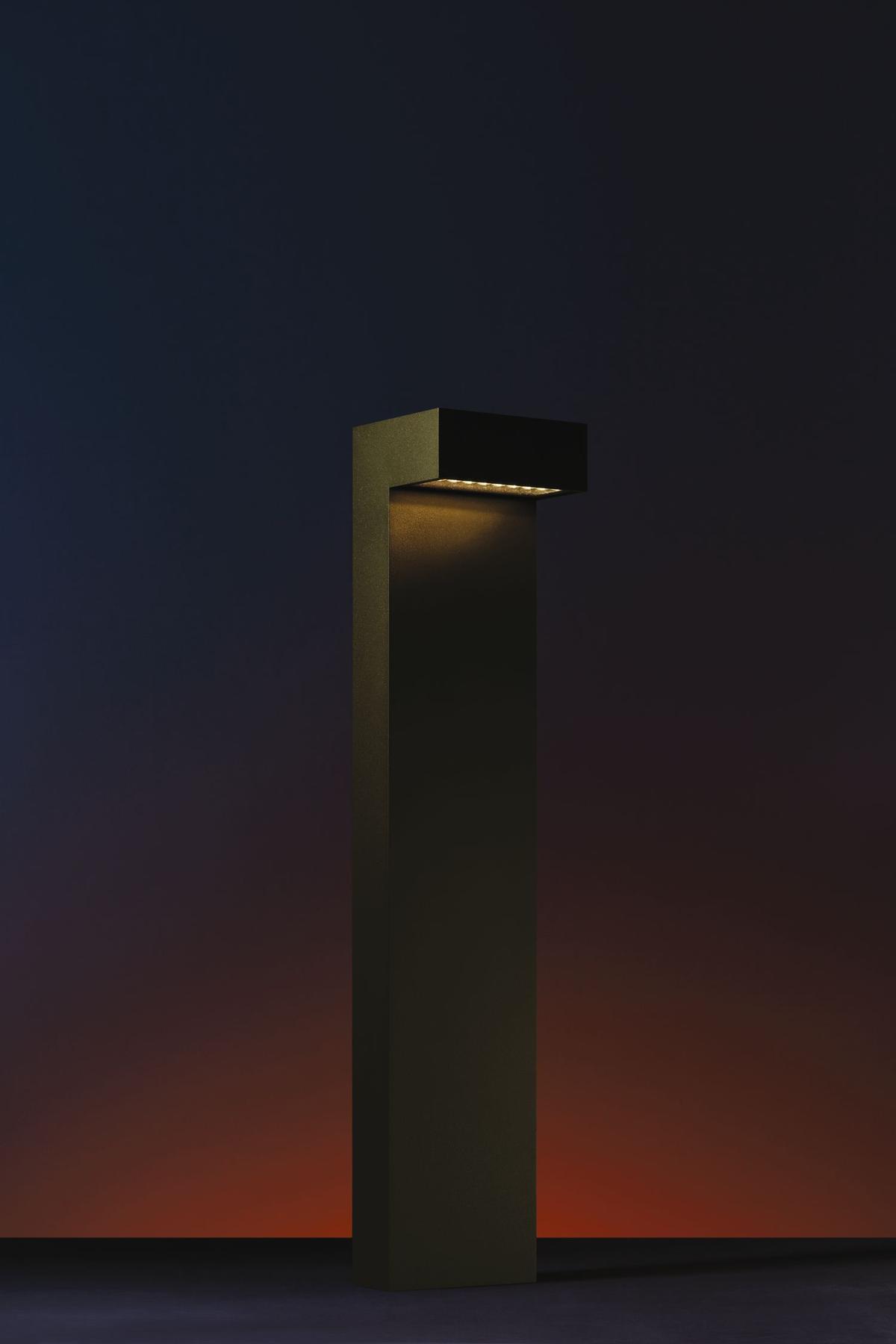

Bollard FA
- Rectangular
- Powder coated
- Monochrome
- General illumination
- Architecture and the arts
Ceiling luminaires

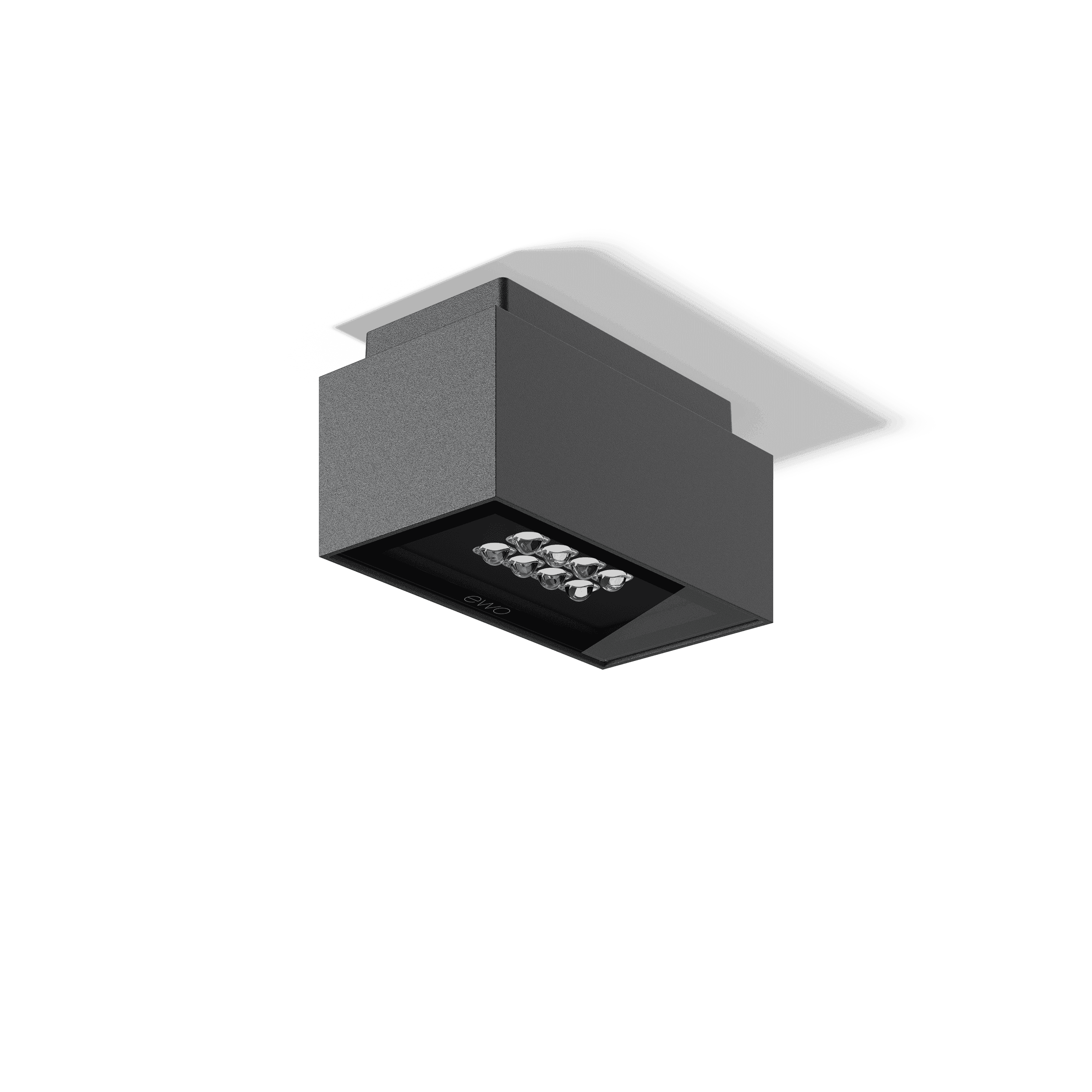

Ceiling FA
- Ceiling
- Surface–mounted
- Rectangular
- Powder coated
- Monochrome
- General illumination
- Architecture and the arts
Pole–mounted luminaires

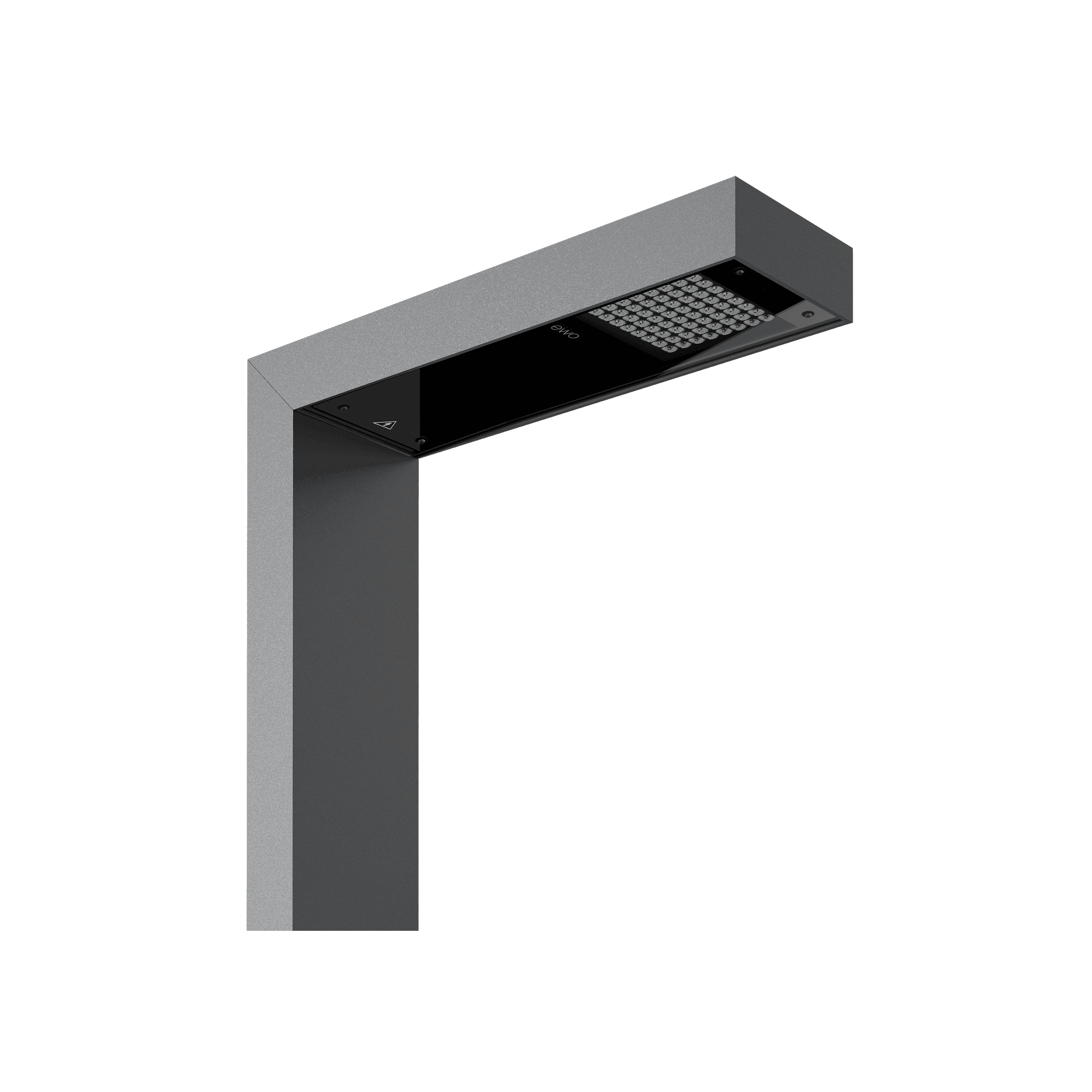

Pole FA
- Pole
- Pole–mounted
- Rectangular
- Powder coated
- Monochrome
- General illumination
- Architecture and the arts
Pole–mounted luminaires

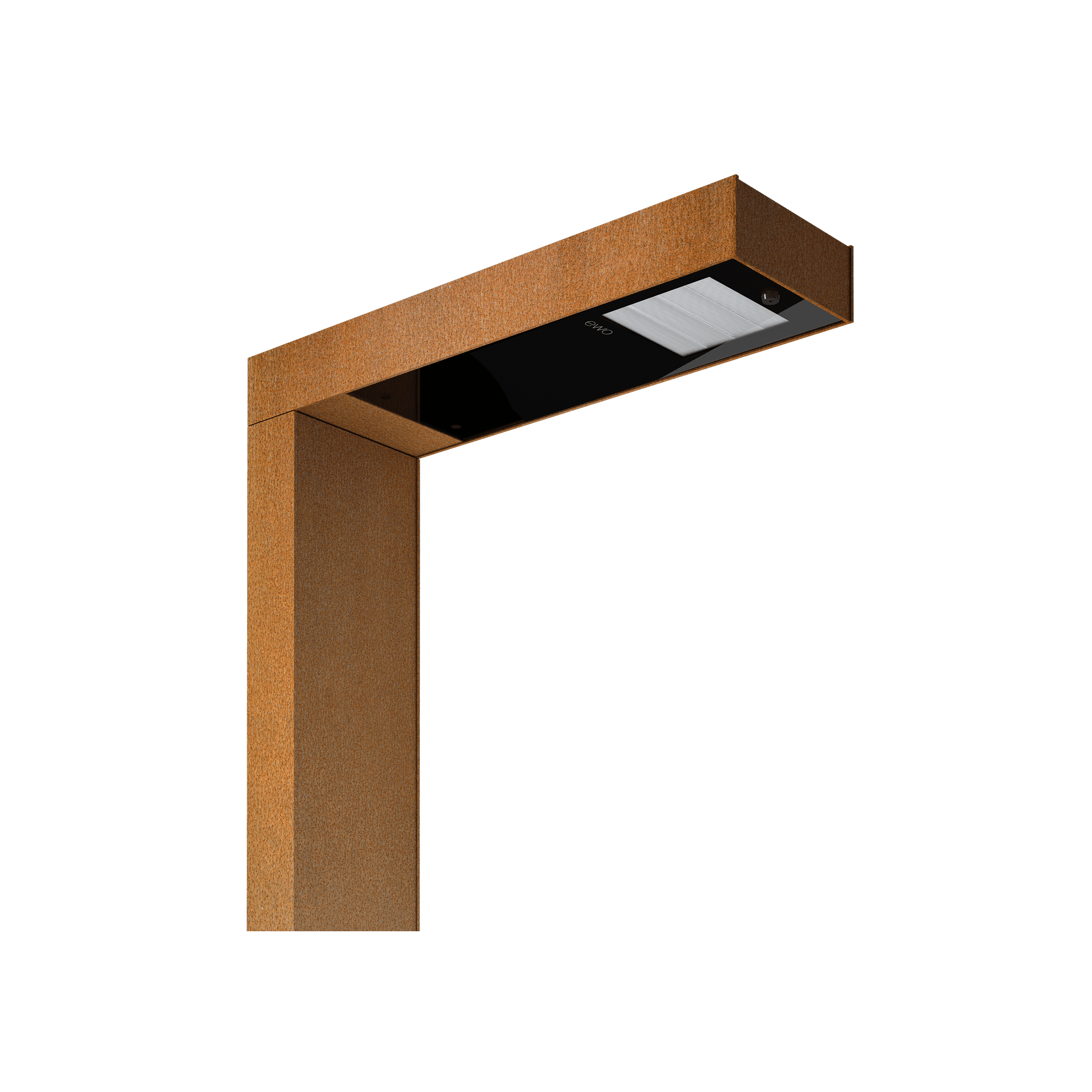

Pole FA COR TEN
- Pole
- Pole–mounted
- Rectangular
- Corten steel
- Monochrome
- General illumination
- Architecture and the arts
Wall luminaires

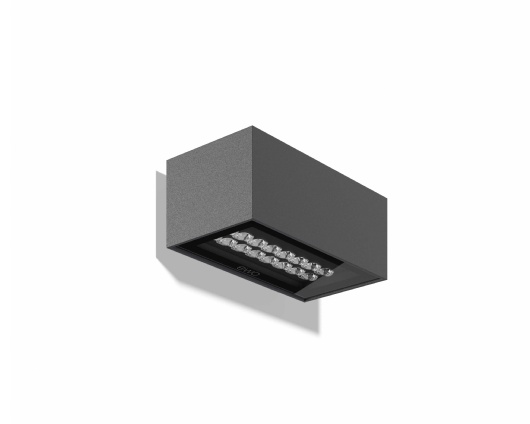

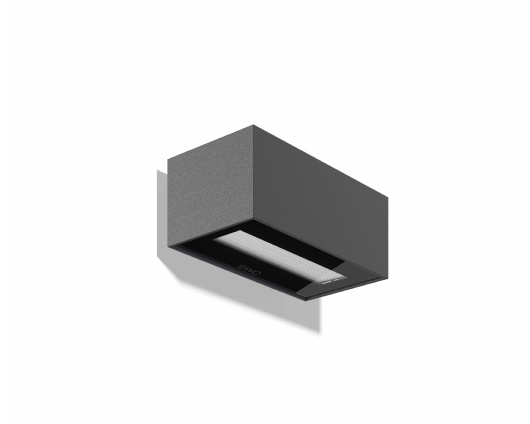

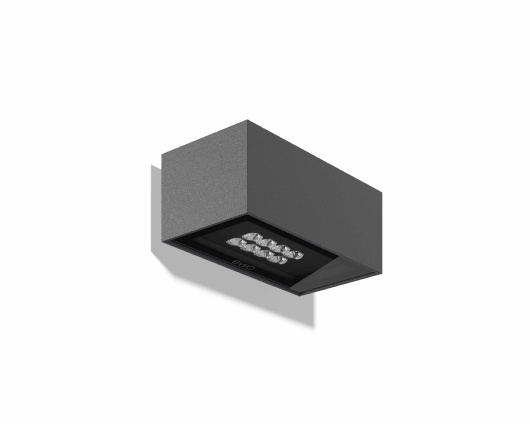

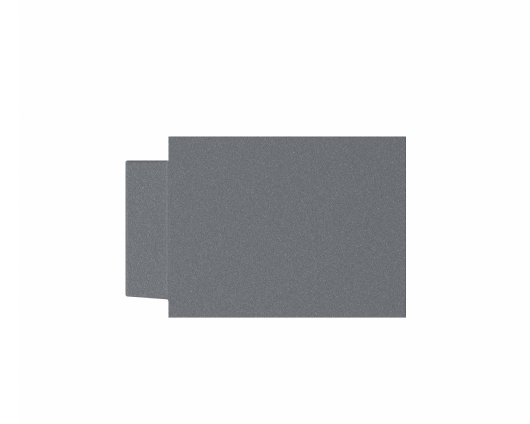

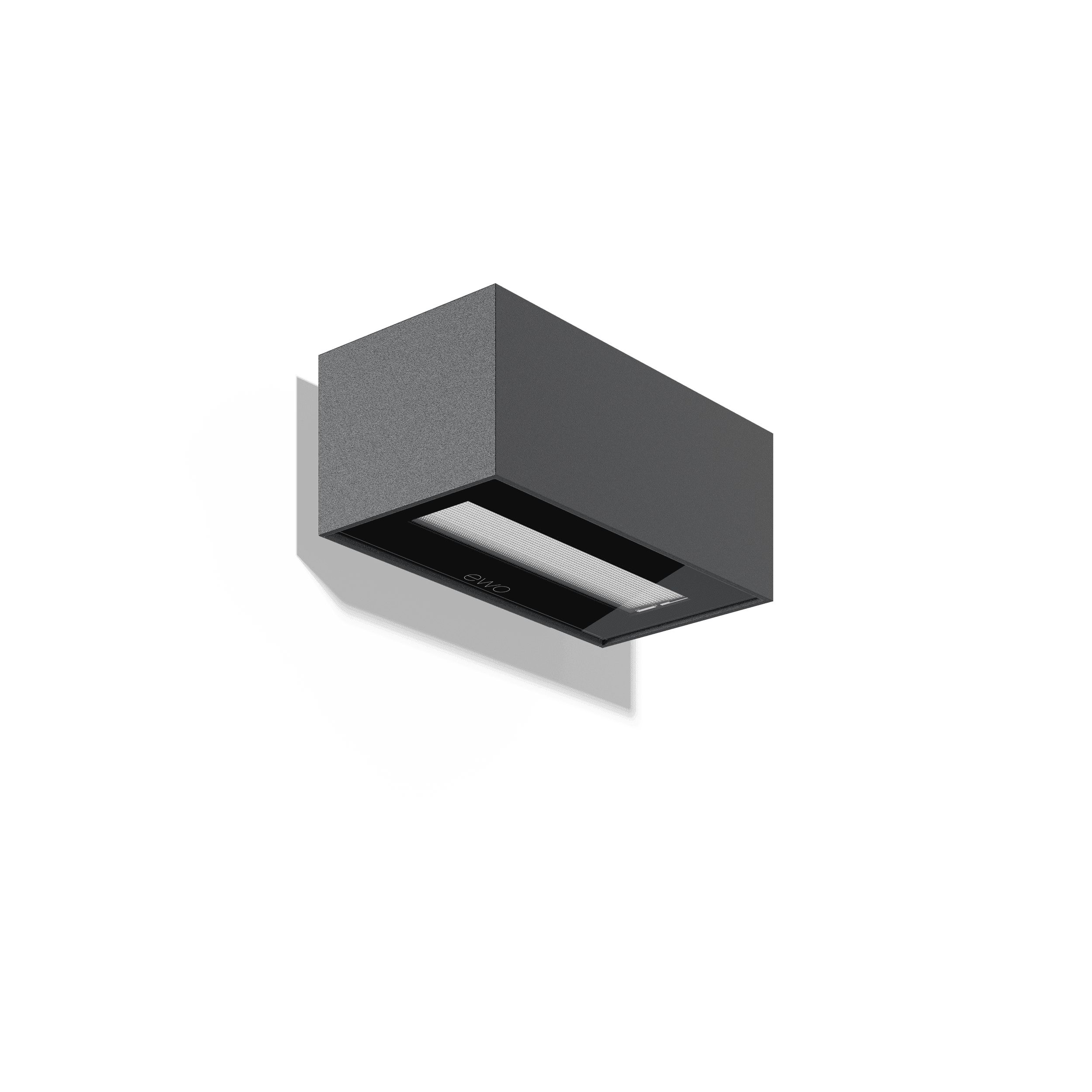

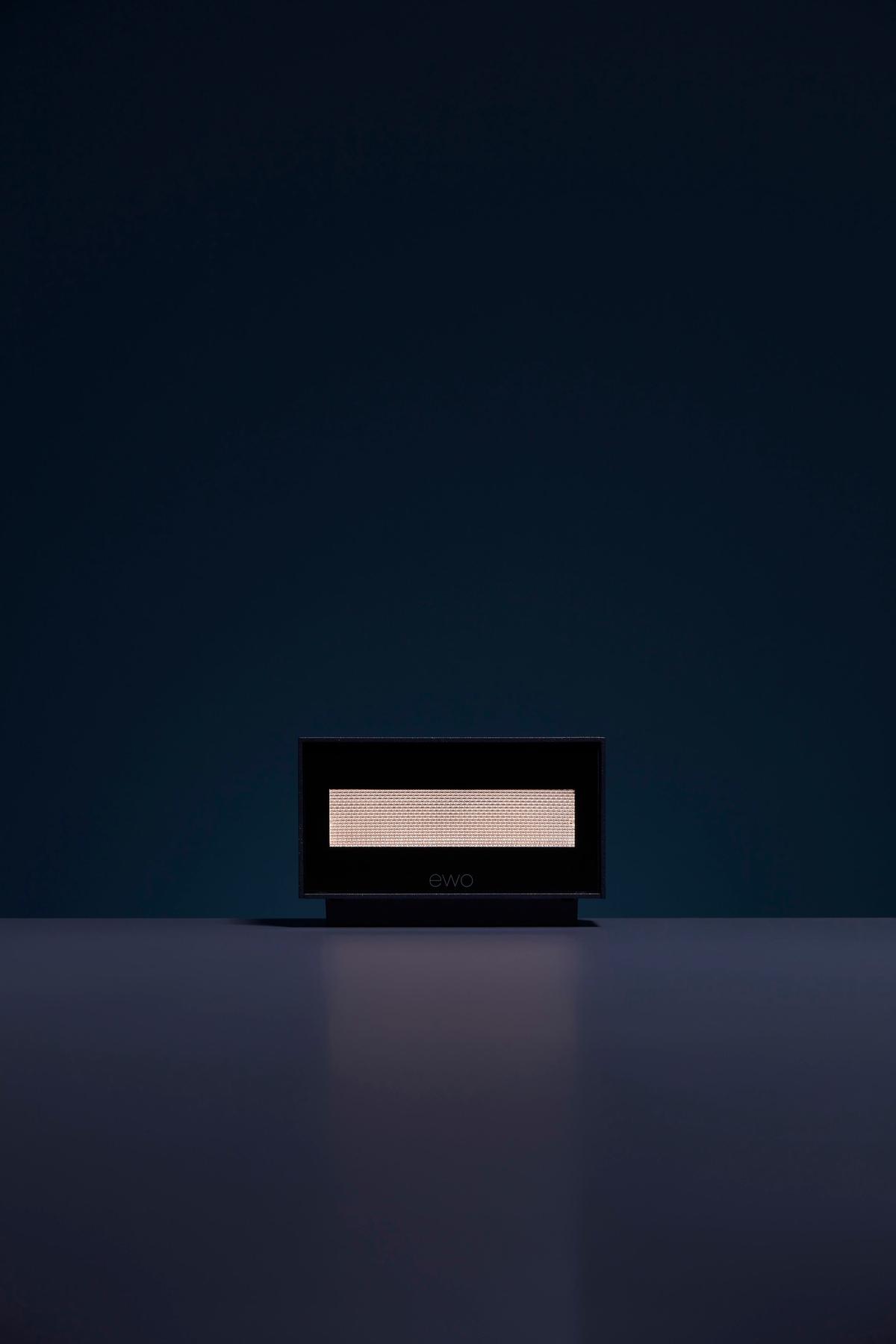

Wall FA
- Wall
- Surface–mounted
- Rectangular
- Powder coated
- Monochrome
- General illumination
- Architecture and the arts

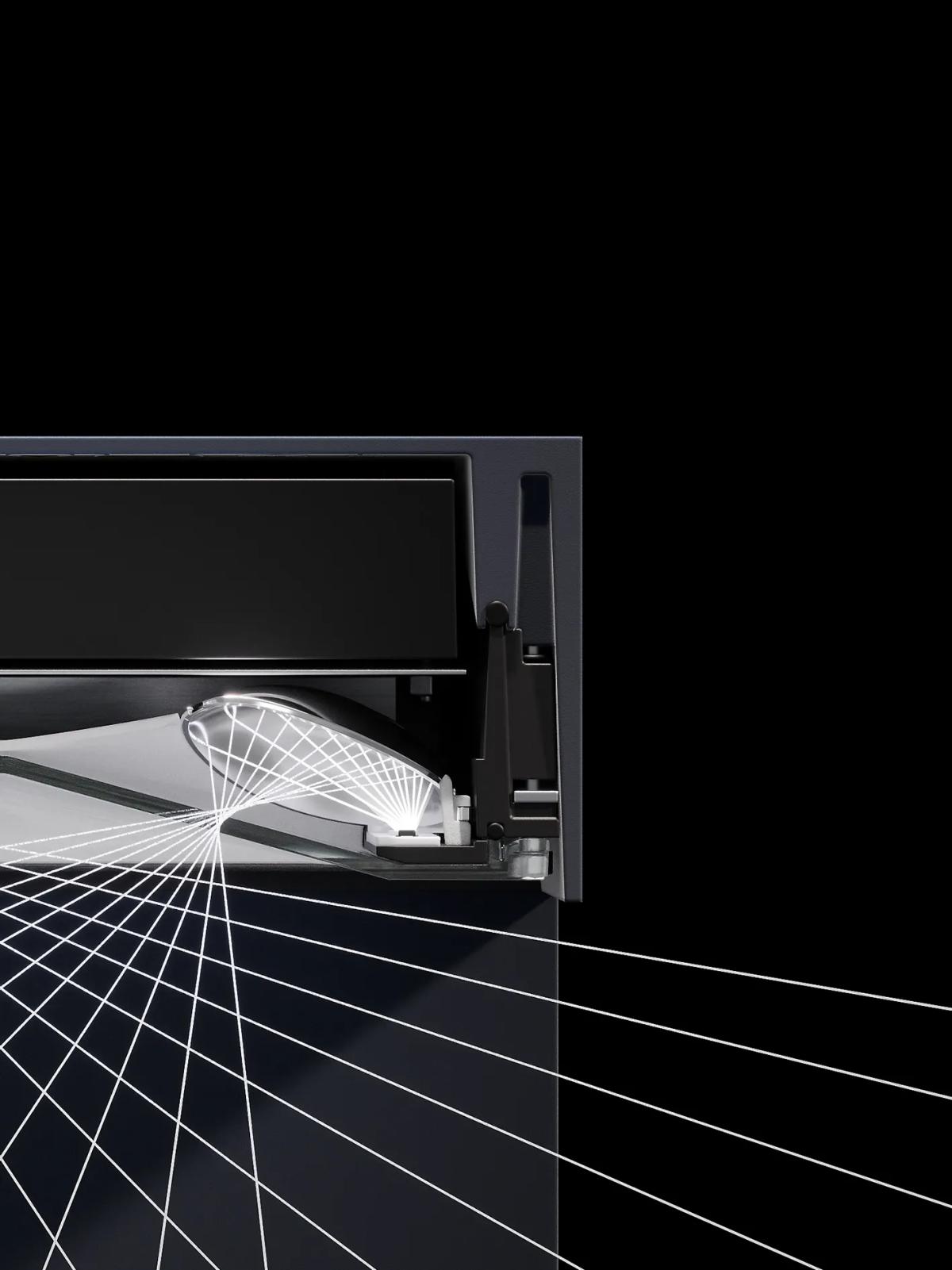

Shape of Light
The FA product family can be equipped with up to 5 LED modules and is compatible with the A–Series and T–Series lenses—the A–Series product range alone enables 1,799,866,966 lens combinations for unbeatable illumination. In addition, systems such as ewoLightTile and ewoLightLayers can be used to adapt the light to any requirements.

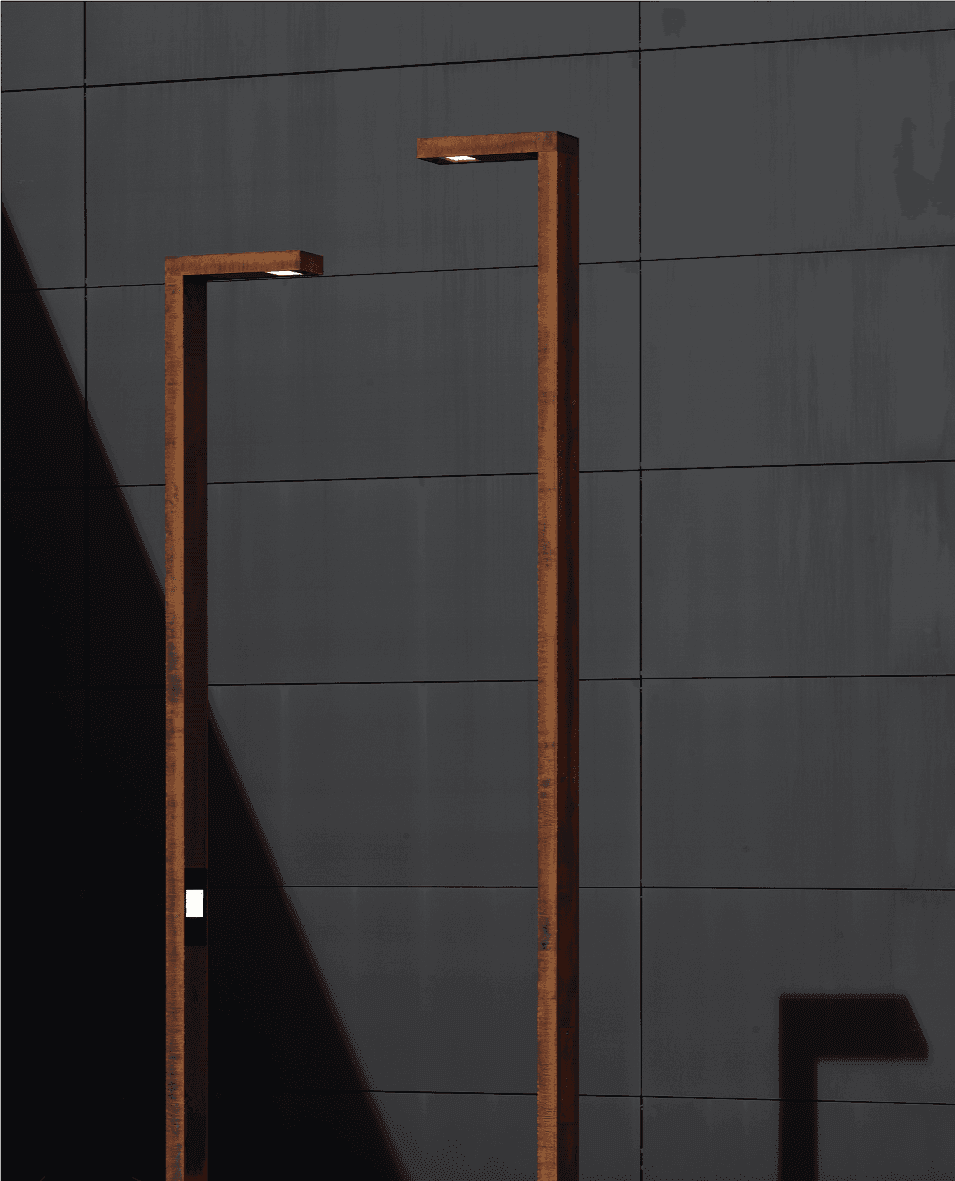

© Oskar Da Riz
© Oskar Da Riz
Intelligence of Light
Equipped with smart lighting, FA can be integrated into any intelligent control system or smart city technology and controlled in groups or individually. The luminaire can also be equipped with intelligence in a second moment.

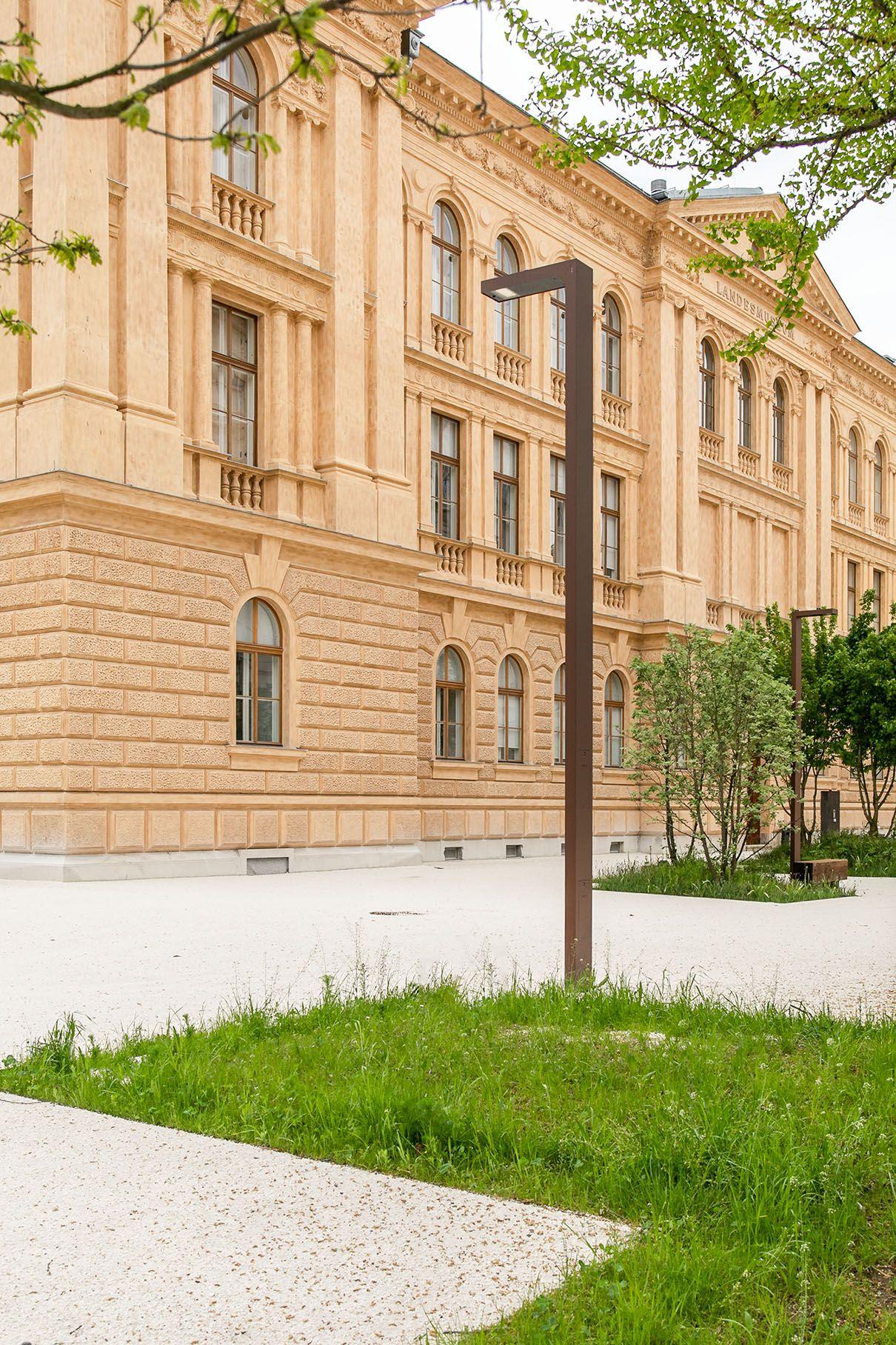

kärnten.museum, Klagenfurt (AT) © Paul Ott
FA770 provides functional and effect lighting for the building, paths and trees in front of the kärnten.museum in Klagenfurt, Austria

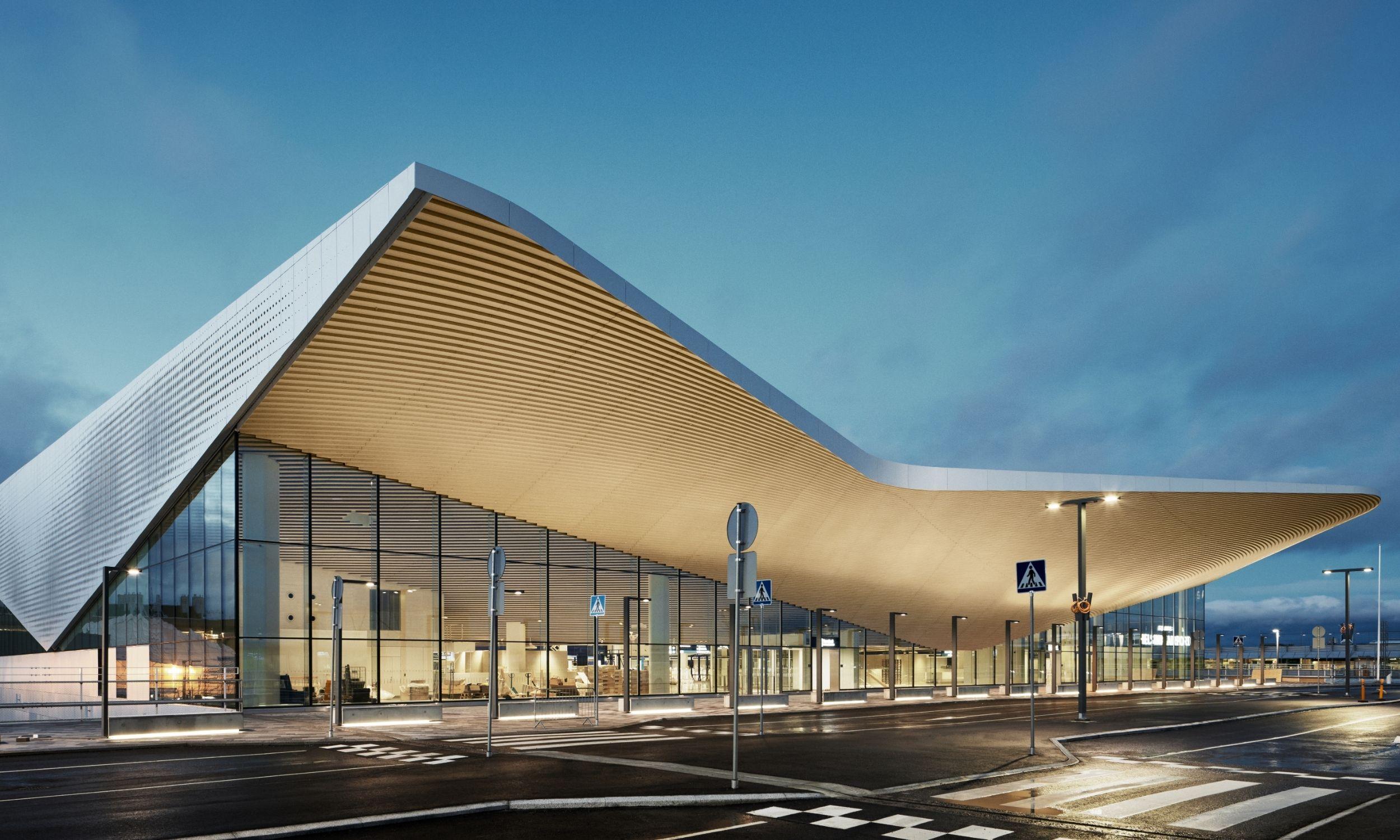

Helsinki Airport © Tuomas Uusheimo Photography

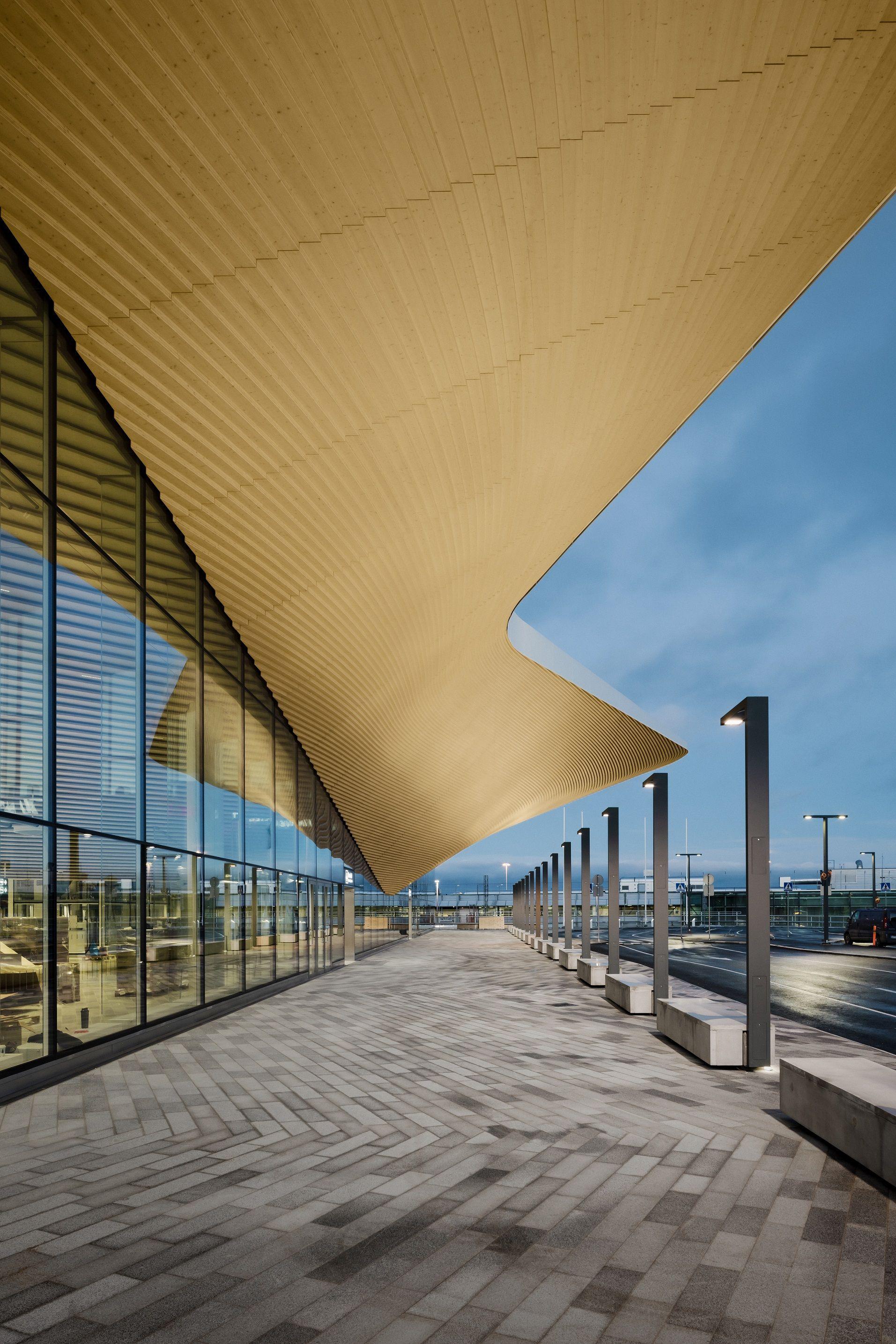

A customized version of the FA770 luminaire provides appropriate lighting in the outdoor area of Helsinki Airport
Our Product Configurator
Design, light distribution, control—with our product configurator you can adapt our luminaires to the requirements of your project.
FA downloads
Would you like to find out more about FA? Here you will find all product-specific documents, from images to data sheets.
Related projects

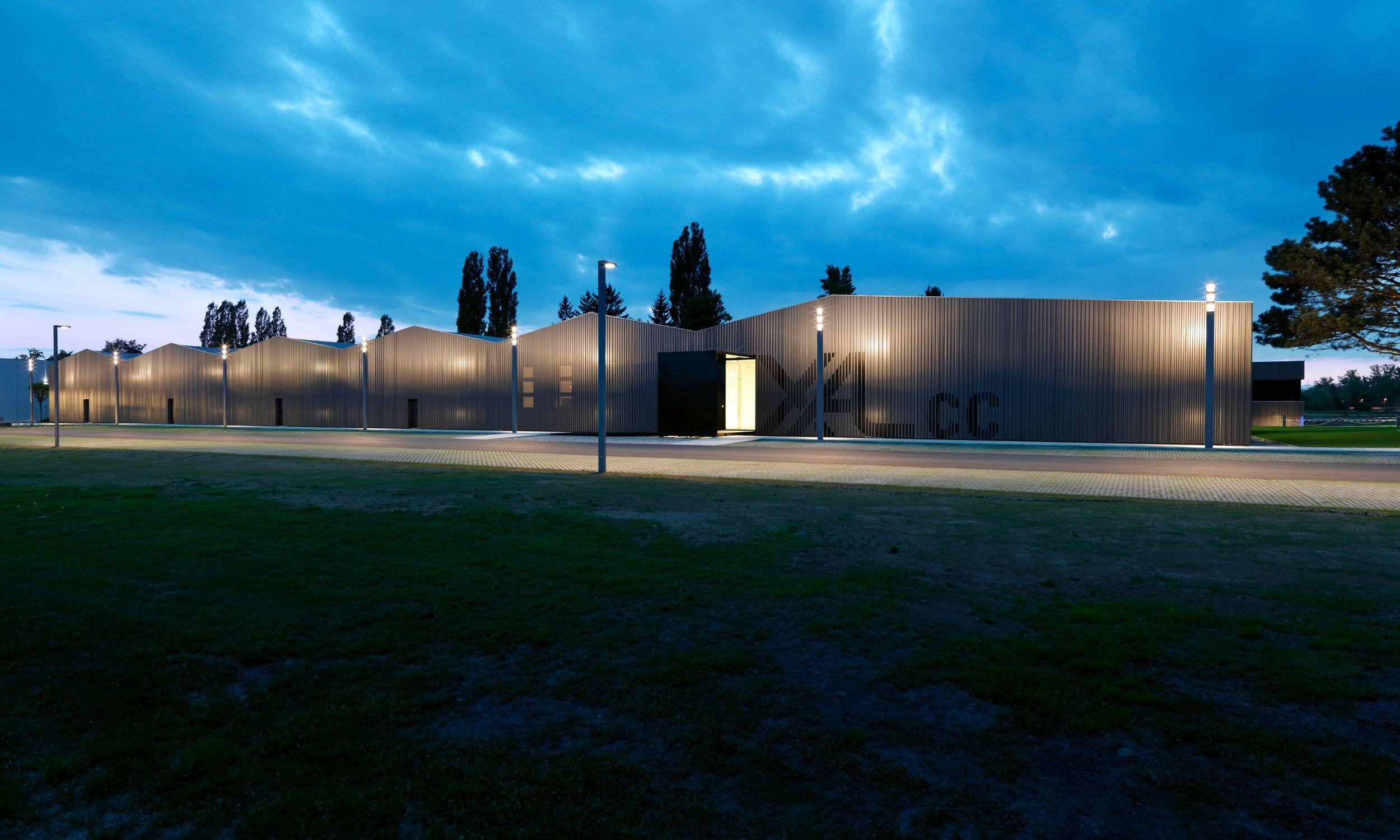

XAL Competence Center, Graz (AUT)
ewo was commissioned to design the outdoor lighting for the new, modern Competence Center of interior lighting expert XAL.

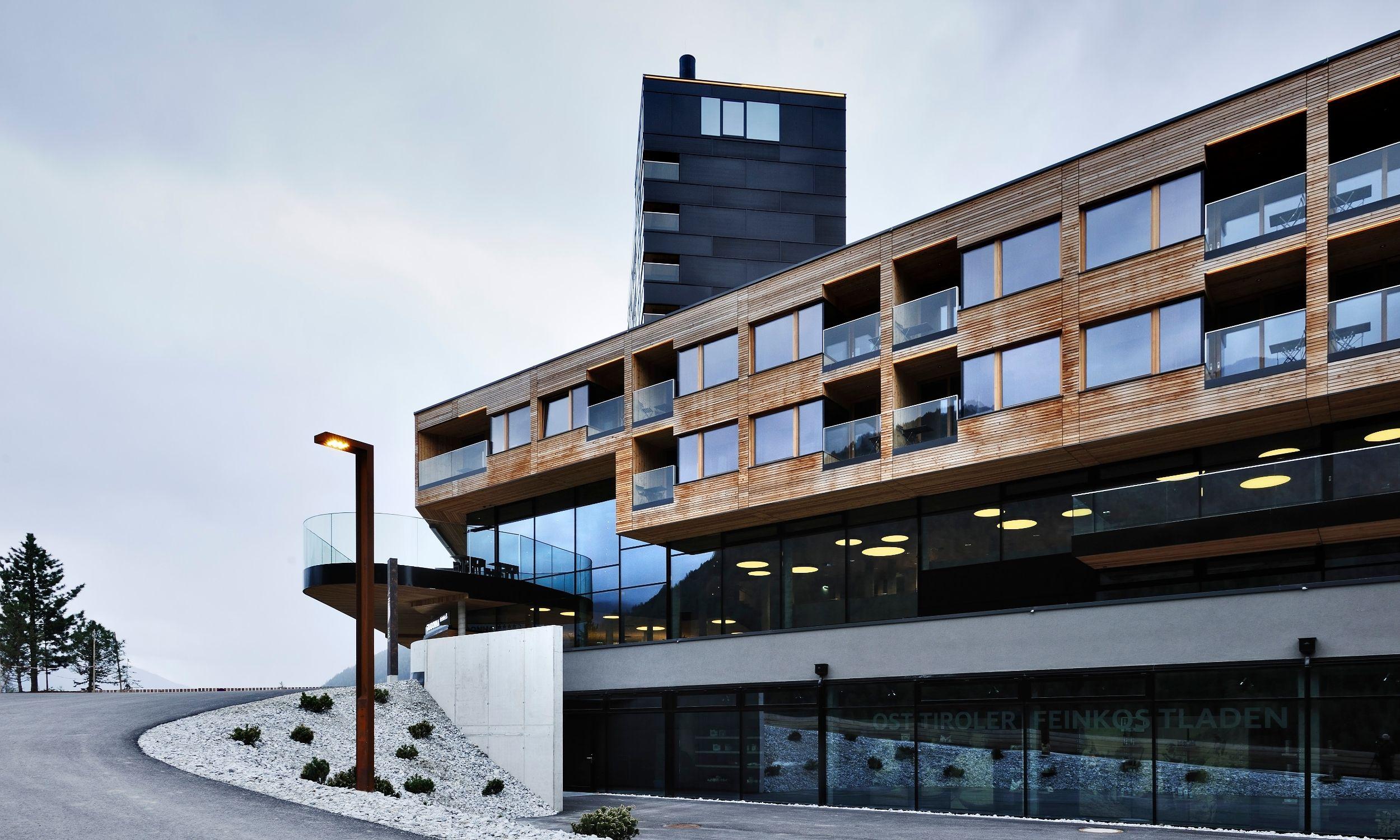

Gradonna Mountain Resort, Kals (AUT)
