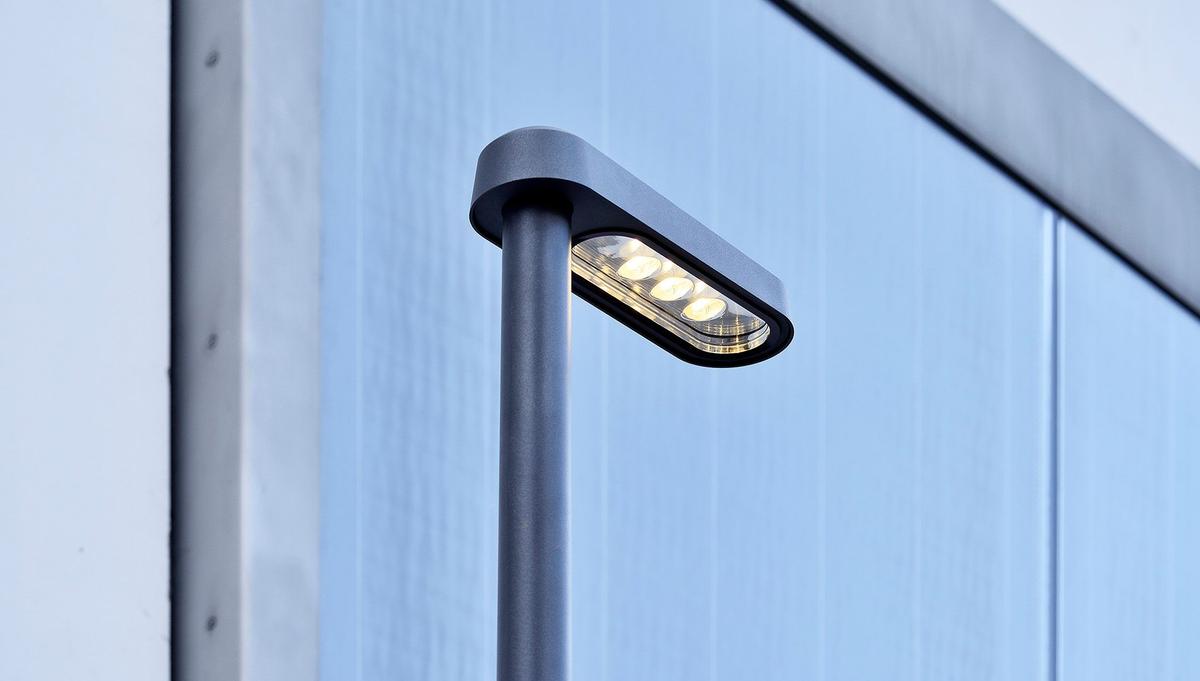

GO WALL MOUNTED

  • Housing accommodates 1 LED lighting unit (LED Board: 16 LED)
  • Current feed: 200 mA–600 mA, depending on ambient temperature
  • Electronic operating device with DALI interface, 1–10 V or stand-alone programming
  • Various light distributions for area, high bay, street or walkway lighting
  • AH02, AP07, AS06, AS07, AS08 (also available in satiné version)
  • Lens made from PMMA, with aluminum support plate

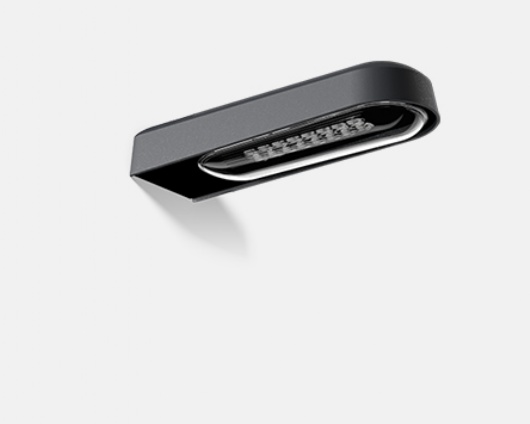

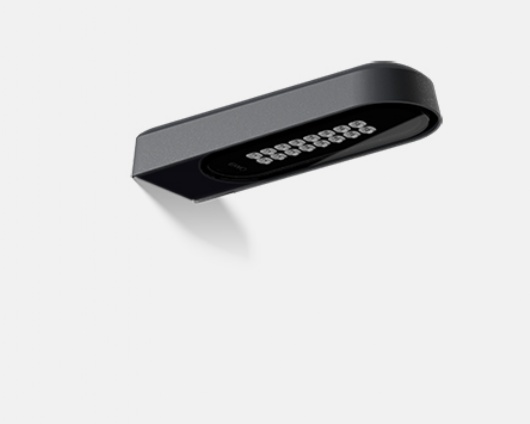

  • Cover in single-pane safety glass (ESG) or curved cover
  • Housing made from die-cast aluminum
  • Wall connection by means of hidden wall flange in aluminum
  • Finish: Aluminum vibratory finishing, or polyester powder coating, anthracite (DB 703), other colours upon request
  • Colour temperature: Warm white (2,200 K, 2,700 K, 3,000 K), Neutral white (4,000 K), Cool white (5,700 K)



GO ewo offers a wide range of standard model options for each product. Thus, we ensure that we are able to provide the ideal solution to meet any project requirement. The Product Configurator guides you through the various options to help you find the custom lighting system solution for your project.

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.
