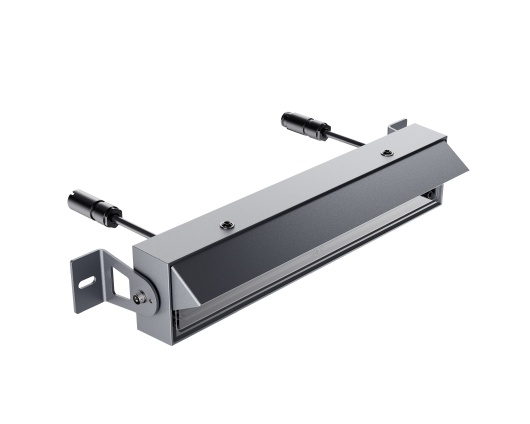

RAZER
RAZER was inspired by the soft, grazing lighting effect of the sunrise and is designed to illuminate roads from very low mounting heights (0.4–1 m). It provides high visual comfort for drivers while protecting the night sky. The sleek and linear design can be optimally integrated into the structures along the road, allowing to avoid the use of pole mounted luminaires. The AV01 lens optic enables a high degree of uniformity and wide spacing between the luminaires.
This makes the linear system RAZER the ideal solution for bridges or other situations where pole mounting heights are difficult to access and maintain, where the climate is harsh (f. ex. the area is exposed to strong winds), or where obtrusive lighting is critical.

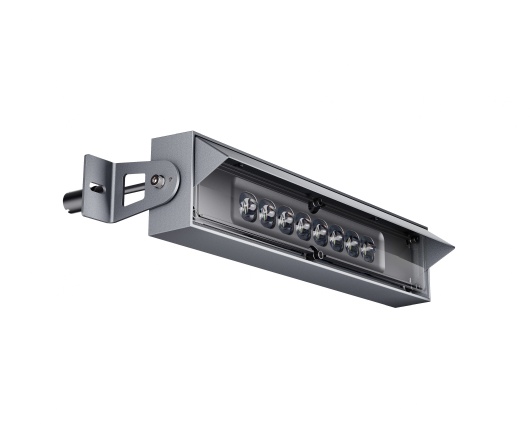

- 8 LEDs
- Color temperatures: 3,000 K (other CCT on request)
- CRI ≥ 80
- Optic: AV01 (grazing effect)
- Current feed (max.): 1,000 mA
- Power (max.): 24 W
- Lumen output: approx. 1,400 lm
- Protect shielding against light pollution
- IK10 (Polycarbonate cover)
- Protection rating IP66
- Housing: 280 x 56 x 60 mm

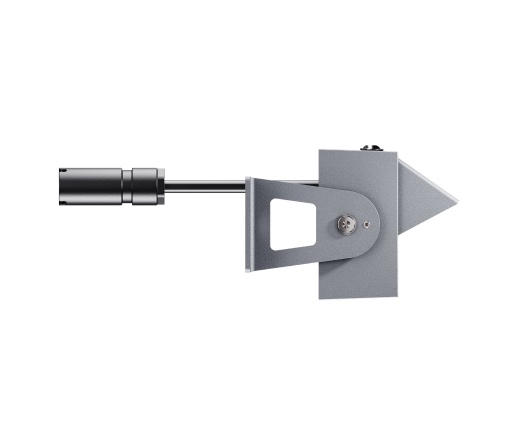

- Adjustable brackets for tilting
- Connectors for through wiring
- Remote driver
The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.
Below, simply select your product variants and lenses, and download either the IES or LDT file.
