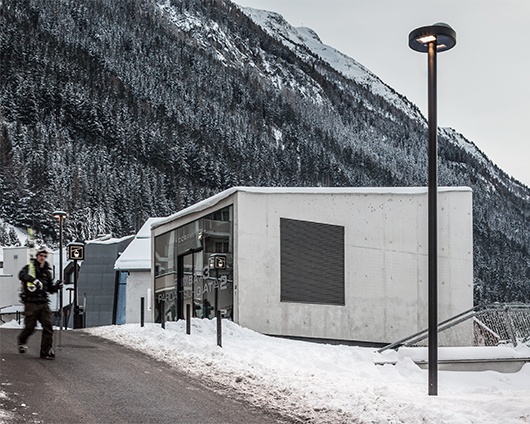

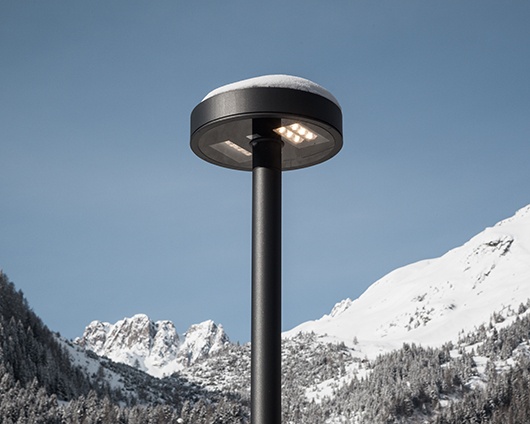

This product is compatible with A–Series and T–Series (ewoLightTile), providing various light distributions for area, high bay, street or walkway lighting.

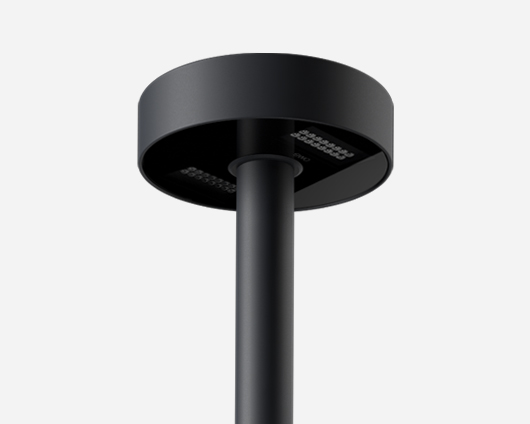

A–Series

  • Current feed: 200 mA–500 mA, depending on ambient temperature
  • Max. luminous flux 19,700 lm
  • Electronic operating device with DALI interface, 1–10 V or stand-alone programming
  • Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request
  • Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
  • Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.

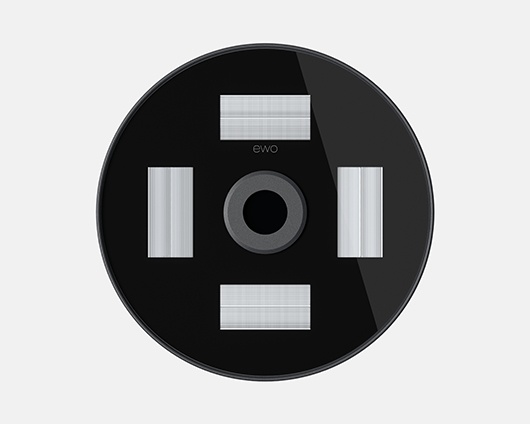

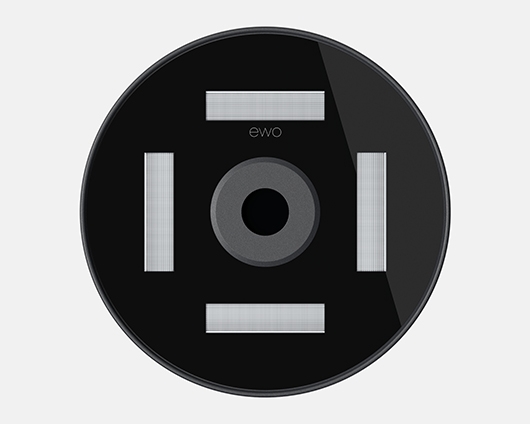

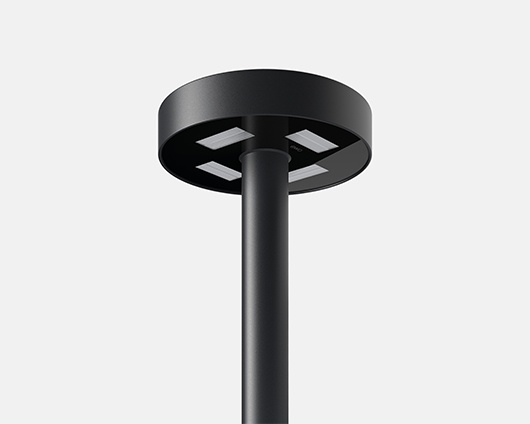

T–Series

  • Current feed up to 225 mA, depending on ambient temperature
  • Max. Luminous flux 7,300 lm
  • Color temperature Tuneable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90
  • Electronic operating device with DALI T8 interface.

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.
