FO

This product is compatible with A–Series and T–Series (ewoLightTile), providing various light distributions for area, high bay, street or walkway lighting.

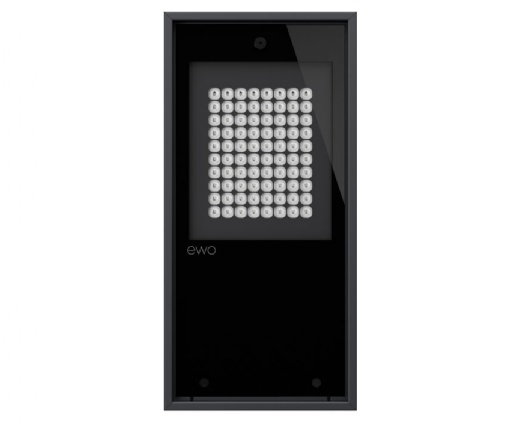

A–Series

  • Current feed: 200 mA–650 mA, depending on ambient temperature (FO600 max. 550 mA)
  • Max. luminous flux 15,900 lm
  • Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request
  • Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other color rendering indexes available upon request
  • Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request
  • Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.

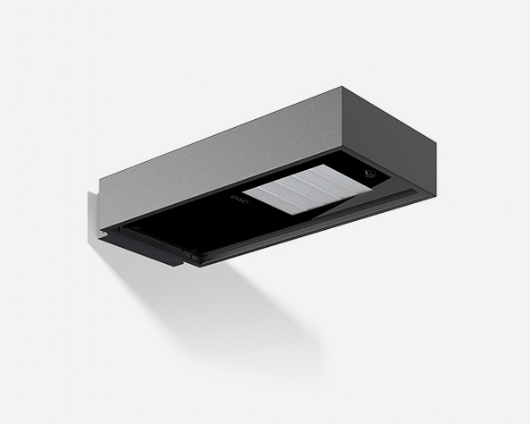

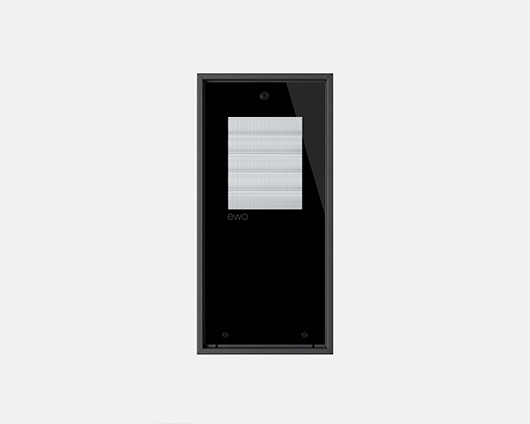

T–Series

  • Current feed up to 225 mA, depending on ambient temperature
  • Max. Luminous flux 4,600 [lm]
  • Electronic operating device with DALI T8 interface
  • Color temperature Tunable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90.

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.
