if round-WD 1
if round-WD 2
if round-WD 3
if round-WD 4
1 2 3 4

if round-WD

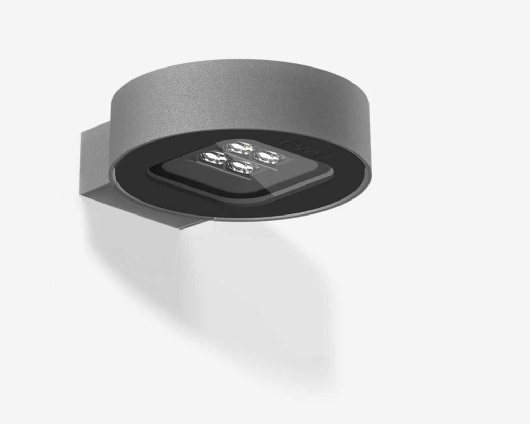

  • Housing accommodates 1 lighting unit (LU), 4 LEDs
  • Current feed: 200–700 mA, depending on ambient temperature
  • Product compatible with A–Series
  • Electronic control gear integrated
  • Various light distributions for walkway lighting
  • Lens made from PMMA
  • Cover in single-pane safety glass (ESG), satin-finished
  • Die-cast aluminum housing
  • Pole made of extruded aluminum profile

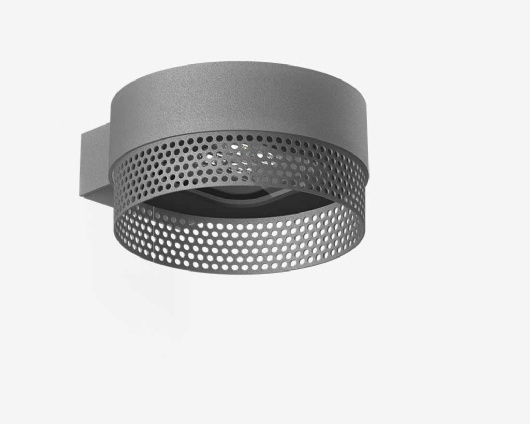

  • Diffuser only for "down" lighting (optional)
  • Finish: polyester powder coating, silver grey (RAL 9007 / DB 702), other colors upon request


Designer: Moritz Kessler
Year: 2022

The new Photometry Configurator provides lighting professionals with quick access to photometric files with just five clicks.

Below, simply select your product variants and lenses, and download either the IES or LDT file.
